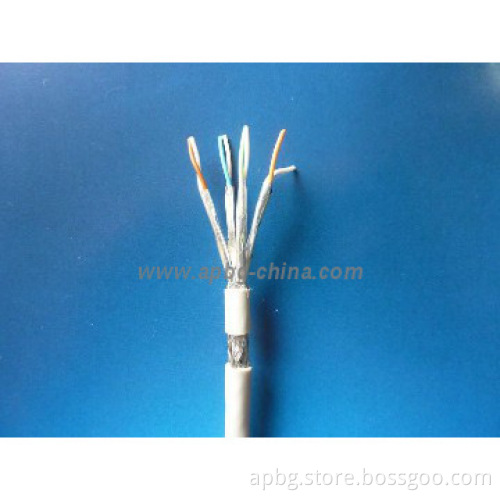

UTP/FTP/SSTP Cat6 network lan cable
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Length | 305m,500m,1000m |
|---|---|
| Jacket | pvc,lszh |
| Color | gray,red,yellow,white,black,orange |
| Metarial | copper,cca,ccs |
| Connector | gold connector,nickel connector |
| Length | 305m,500m,1000m |
| Insulator | PE |
| Shielded Cable | No |
| Conductor Material | CU |
Detail Description
UTP/FTP/SSTP Cat6 network lan cable
Cat6 Patch Cables/Cat6 Ethernet Cable
Conductor Dimension: 0.52~0.56 ±0.02mm
Conductor Material: CU/CCC/CCA /CCC+CCA/CCA+CCS
Insulation: 1.0mm HD-PE (High density polyethylene)
Number of Twisted Pair: 4P
Jacket: PVC (Polyvinyl-Chloride)
LSOH (Low Smoke Zero Halogen)
The external cable diameter: 6.5~6.8mm
Color: different color is available
Operating temperature: -20 ° C - +75 ° C
UTP unshielding: Plastic Seperator and Ripcord
FTP shielding: Plastic Seperator+Polyester+Al Foil+Ripcord
SFTP shielding: Plastic Seperator ,Polyester+Al Foil+Ripcord+Braiding
Introduction:
CAT6 is an Ethernet cable standard defined by the Electronic Industries Association and Telecommunications Industry Association (commonly known as EIA/TIA). CAT6 is the sixth generation of twisted pair Ethernet cabling.
CAT6 cable contains four pairs of copper wire like the previous generation CAT5. Unlike CAT5, however, CAT6 fully utilizes all four pairs. CAT6 supports Gigabit Ethernet speeds up to 1 gigabit per second (Gbps) and supports communications at more than twice the speed of CAT5e, the other popular standard for Gigabit Ethernet cabling.
Cross-shaped wire as the filler enhance article proximal crosstalk (NEXT) and impedance performance and strengthen the bandwidth and SNR surplus
Additional Information
| Payment Terms | L/C, T/T, D/P |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | 10day-fastdelivery time, FOB Shenzhen, HongKong,any one you need |
| FOB Port | Hong Kong,Shenzhen |
| Loading Info | By sea, By air as you need |
| Packing Info | 1 roll/inner box,2 inner box/outter box |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
