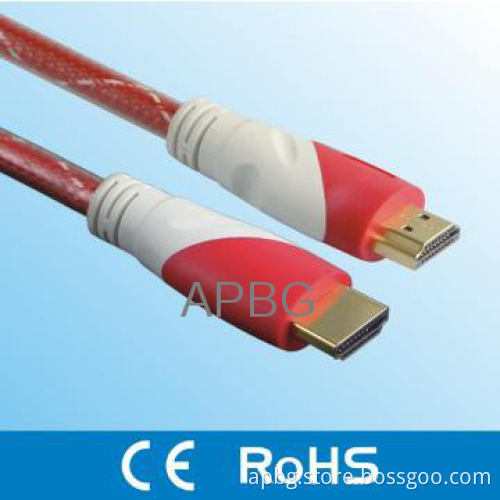

Double mold HDMI Cable for HDTV
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| metarial | copper,cca,ccs |
|---|---|
| color | gray,red,yellow,black,orange |
| length | 1.5m/1.8m/3m/5m/10m |
| jacket | PVC,LSZH |
Detail Description
lAvailable Wire: 34AWG, 30AWG, 28AWG, 26AWG, 24AWG
PVC Jacket: CL1, CL2, CL3, Transparent type, etc.
Connector: Nickel plated, Gold plated, Silver plated
Conductor & Shield: OFC, Pure copper, Tinned copper, etc.
Function
1.HDMI 19pin-M to HDMI 19pin-M Cable
2.100% triple shield
3.nylon jacket
4.24k gold plated / Ni plated plugs
5.HDMI 1.4 certificate,1.3 complaint
6.Oxygen free copper conductor
7.with differenct length up to 20m
specification
Electrical: 100% open& short test
hi-pot: DC 300V 10MS
insulation resistance: 10m OHM Min
Impedance: 30&28AWG cable: 2.0 OHM Max
26AWG cable: 3.0 OHM Max
24&22AWG cable: 5.0 OHM Max
working temperture: -25~+85
Mechanical: insulator material : high-temperature thermoplastic (UL94V-0) PE low density
contact: copper alloy
insertion force: 44.1N MAX
withdraw force: 9.8 N MAX
Additional Information
| Payment Terms | L/C, T/T, D/P, Western Union |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | 10day-fastdelivery time, FOB Shenzhen, HongKong,any one you need |
| FOB Port | Hong Kong,Shenzhen |
| Loading Info | By sea, By air as you need |
| Packing Info | Ploy bag,biester package,gift box,specical design for you for OEM |
| Target Market(s) | Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
