Waterproof IP65 Cree LED High Bay Lighting 200watt 300w 400
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|

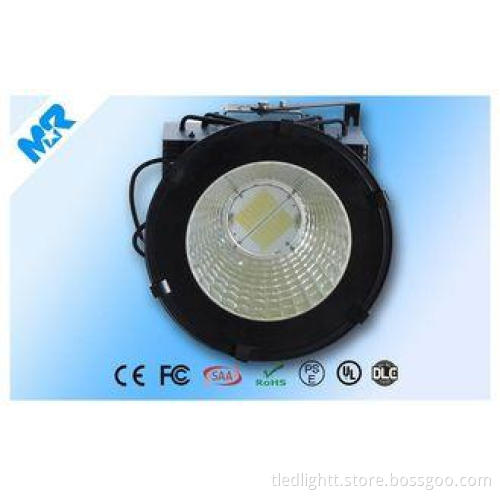

Waterproof IP65 Cree LED High Bay Lighting 200watt 300w 400w 500w With Meanwell Driver
1) CE&Rohs, PSE, SAA,UL&DLC and FCC approval
2) Long life span, energy saving, environmental protection,without causing any flickering,helpful to protect the eyes.
3) Adopt high-quality-high-efficiency constant current driver, to ensure the products' stability, to reduce the power consumption greatly.
4) With high-quality LED light source with a long lifespan, lower temperatures.
5) Full series from 100W to 500W, support indoor and outdoor use
6) OEM&ODM could be available, manufacturer focusing on led lighting more than 8years offer reasonable price, delivery time and quality could be guaranteed.
Quick details:
- Light source: LED
- Item Type: High bay Lights
- LED light source: CREE CHIP
- Warranty: five years
- Input Voltage: AC85-277V 50/60Hz
- Lamp Power(W): 200watt 300Watt 400Watt 500Watt
- Lamp Luminous Flux(lm): 20000lumen 3000lumen 40000Lumen 50000Lumen
- CRI (Ra>):Above 80
- Lamp Luminous Efficiency(lm/w):130lm/w for CREE chip, 100lm/w for the whole lamp
- Color Temperature(CCT):2700-6500K
- Working Temperature(℃):-40-50degree
- Working Lifetime(Hour):50000hours
- Lamp Body Material:Aluminium
- IP Rating: IP65
- Viewing angle: 60degree
- Certification: CE&Rohs, PSE, UL&DLC and FCC
- Place of Origin:Guangdong China (Mainland)
- Brand Name:MR
- Model number: LED high bay lights
Description:
1. This product meets the standard of CE&Rohs, PSE, UL&DLC and FCC certification.
2. With external high efficiency MEANWELL power supply.
3. Respirator and waterproof design, eliminating mist, avoiding condensation, improving quality, extending the life span
4. By riveting the heatpipe to the fins, conducting the heat rapidly from chips bottom to the fins, greatly lower don the temperature of light source to keep stable performance
5. CRI(standard products)>80.
6. Ambient temperature:-40°C-50°C, surface temperature: 52°C-55°C
7. No mercury, lead or other hazardous materials; no radiation,no electromagnetic radiation, no frequency flash, instant start up, no hurting eyes.
Specifications:
Item Type | LED High Bay Lights |
Model Number | TGD-MR200-C TGD-MR300-C TGD-MR400-C TGD-MR500-C |
Input Voltage(V) | AC100-277V |
Lamp Power(W) | 200Watt 300Watt 400Watt 500Watt |
Lamp Luminous Efficiency (lm/w) | 130lm/w for LED chip 100lm/w for the whole lamp |
CRI (Ra>) | Above 80 |
Color Temperature(CCT) | 3000K,4000K,5000K,6000K |
LEDs | High power LEDs |
Size |
467mm*374mm*374mm(200W) 459mm*374mm*374mm(300W) 497mm*374mm*374mm(400W) 497mm*374mm*374mm(500W) |
Beam Angle | 60 degree |
Working Temperature (°C) | -40 - 50degree |
Working Lifetime (Hour) | 50,000 |
Lamp Body Material | Aluminum |
IP Rating | IP65 |
Certification | DLC,UL, FCC,CE, RoHS, PSE |
Place of Origin | Shenzhen, China (Mainland) |
Brand Name | MR |
Replacement | 1000-2500W Metal Halide or Halogen |
Warranty(Years) | 3 |
Sample price | $300-$720 |
Packing |
45.5*45.5*51cm(1pcs for 200W-300W) 46.5*46.5*55cm(1pcs forc400W) 48.5*48.5*55cm(1pcs for 500W) |
PF | >0.95 |
THD | <15% |
Payment Terms:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-5 working days;
2. Bulk order: 7-15 working days.
Warranty:
3 years warranty
Our Service:
1. Delivery in time;
2. Strict quality control system;
3. Promptly reply and solve on problems;
4. Strong production capacity;
5. Good after-sale service to remove your worries;
After-sale Service:
1. Quick reply on customers’ questions;
2. If anything goes wrong with the products’ quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
Application
- Tunnel, Subway, Underground Lighting;
- Gymnasium, Sports Stadium Lighting;
- Building, Billboard Lighting;
- Gas Station, Garage Lighting;
- Park, Garden Lighting;
- Workshop, Factory Lighting;
- Warehouse, Storage Lighting;
- Yard, Square Lighting;
- Road, Highway Lighting;
- Station, Dock, Deck, Ship, Boat Lighting
