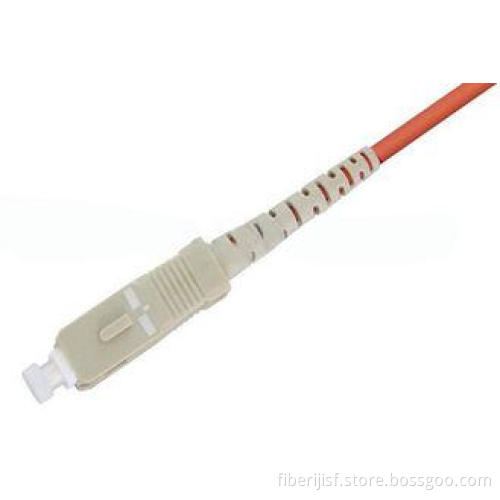

Boots In a Variety of Colors SC Fiber Optic Connector for Wide Area Networks
Fiber optic connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
SC fiber connector is snap-in connector also with a 2.5mm ferrule that is widely used for its excellent performance.
Feature:
- Low insertion loss and return loss
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Boots in a variety of colors
-
High precision alignment
Availability:
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Housing kits without ferrule are available.
PC and APC are available
Mechanical Drawings:
Specifications:
|
Item |
Single mode |
Multi mode |
|
Insertion loss |
PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB |
＜0.3dB |
|
Return loss |
PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB |
＞25dB |
|
Insert-pull test |
1000(times) ＜0.2dB |
|
|
Operating temperature |
-40℃~ +80℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations: ＜1um |
127um concentricity deviations: ＜3um |
|
Suitable fiber |
PC/APC(9/125um) |
PC(50/125um, 62.5/125um) |
Application:
1. CATV, metro test equipment; FTTH; 2. Telecommunication networks; 3. Local area networks (LAN); 4. Wide area networks (WAN); 5. Premise installations; 6. Data processing networks; 7. Video and military active device termination. 8. Optical Distribution Frame 9. Optical Network Equipments
