Quick Detail:
Fairchild Semiconductor - 15A, 600V Ultrafast Diode
Description:
The RUR1S1560S is an ultrafast diode (trr < 55ns) with soft
recovery characteristics. It has low forward voltage drop and
is of silicon nitride passivated ion-implanted, epitaxial planar
construction.
This device is intended for use as freewheeling/clamping
diode and rectifier in a variety of switching power supplies
and other power switching applications. Its low stored charge
and ultrafast soft recovery minimizes ringing and electrical
noise in many power switching circuits, thus reducing power
loss in the switching transistor.
Formerly developmental type TA9905.
Applications:
• Switching Power Supplies
• Power Switching Circuits
• General Purpose
Specifications:
Datasheets | RUR1S1560S |

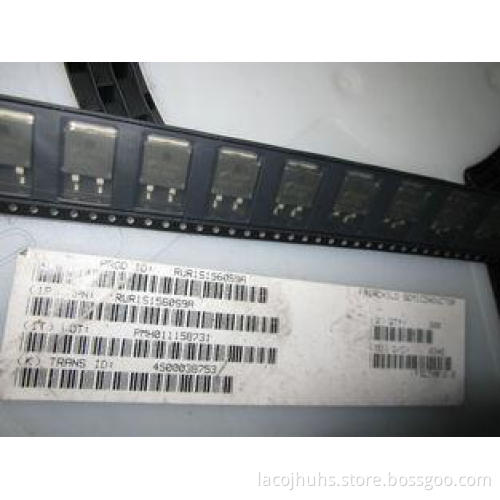

Product Photos | TO-263 |
Standard Package | 800 |
Category | Discrete Semiconductor Products |
Family | Diodes, Rectifiers - Single |
Series | - |
Packaging | Tape & Reel (TR) |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 600V |
Current - Average Rectified (Io) | 15A |
Voltage - Forward (Vf) (Max) @ If | 1.5V @ 15A |
Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 60ns |
Current - Reverse Leakage @ Vr | 100µA @ 600V |
Capacitance @ Vr, F | - |
Mounting Type | Surface Mount |
Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Supplier Device Package | D²PAK |
Dynamic Catalog | Standard Diode |
Other Names | RUR1S1560S9A-ND |
