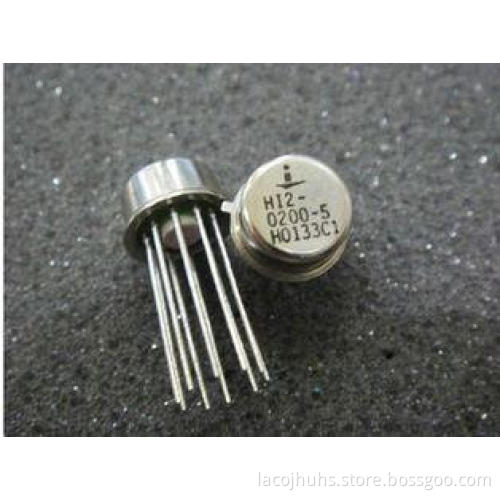

HI2-0200-5 - Intersil Corporation - Dual/Quad SPST, CMOS An

Quick Detail:

Dual/Quad SPST, CMOS Analog Switches

Description:

HI-200/HI-201 (dual/quad) are monolithic devices comprising independently selectable SPST switches which feature fast switching speeds (HI-200 240ns, and HI-201 185ns) combined with low power dissipation (15mW at 25oC). Each switch provides low “ON” resistance operation for input signal voltage up to the supply rails and for signal current up to 80mA. Rugged DI construction eliminates latch-up and substrate SCR failure modes.

All devices provide break-before-make switching and are TTL and CMOS compatible for maximum application versatility. HI-200/HI-201 are ideal components for use in high frequency analog switching. Typical applications include signal path switching, sample and hold circuit, digital filters, and operational amplifier gain switching networks.

Applications:

• Analog Voltage Range . . . . . . . . . . . . . . . . . . . . . . . ±15V

• Analog Current Range . . . . . . . . . . . . . . . . . . . . . . . 80mA

• Turn-On Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240ns

• Low rON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Ω

• Low Power Dissipation . . . . . . . . . . . . . . . . . . . . . . .15mW

• TTL/CMOS Compatible

Specifications:

Competitive Advantage:

Warranty :180days for all goods

Free shipping:Order over $600 win a free shipment fee:goods weight below 3Kg.

Mega Source Electronics stocks components ready to ship. Hard to find, obsolete and highly allocated integrated circuits and semiconductors are all can be found by us.

Mega Source Electronics has established a well-developed logistics system and global logistics network, which can guarantee our service very quick, convenient and efficient.
