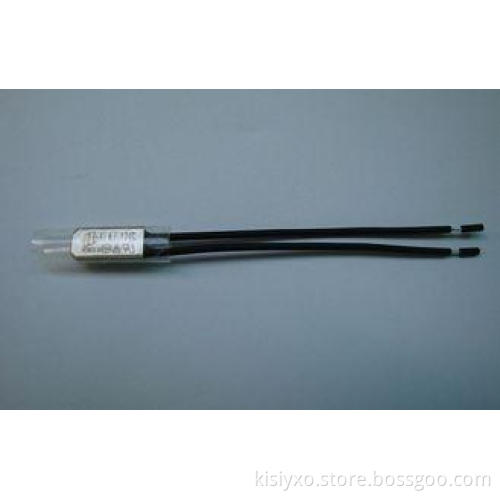

Heat Resistance High Temperature Limit Switch , 17am Thermal Overload Protection

High temperature controller switch description

KI67 universal and enhanced serial thermal protectors are widely used in industry, electrical household appliance and electric equipment to avoid abnormal operation caused by overcurrent and overtemperature. The products provide effective, reliable and safe protection. The enhanced casing is suitable for internal installation of plastic hermetic motor, which can bear the plastic molding pressure at 3.5Mpa. The performance of the products satisfies the standards including IEC34-11, GB13232, GB/T13002, etc.

Structure and protection principle

KI67 type thermo protector is composed of the parts of thermal conductive casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. When current passes through the bimetallic parts with resistance and in case of abnormal operation, along with the increase of current or the environment temperature rises to the set value, the bimetallic parts perform quick action, opens the contact point, and disconnects the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation

Design Detail

Note
1.Because the casing is made of conductive metal, thermal conductive and heat resistance insulation sleeves are

required for use.
2.Refer to A-C graph for selecting protection temperature.


Rated action temperature table

Type

Open Temperature Range

Type

Open Temperature Range

50℃

50±5.0℃

100℃

100±5.0℃

55℃

55±5.0℃

105℃

105±5.0℃

60℃

60±5.0℃

110℃

110±5.0℃

65℃

65±5.0℃

115℃

115±5.0℃

70℃

70±5.0℃

120℃

120±5.0℃

75℃

75±5.0℃

125℃

125±5.0℃

80℃

80±5.0℃

130℃

130±5.0℃

85℃

85±5.0℃

135℃

135±5.0℃

90℃

90±5.0℃

140℃

140±5.0℃

95℃

95±5.0℃

145℃

145±5.0℃

150℃

150±5.0℃

Note: The recovery temperature is 2/3 of the standard action temperature with the tolerance of ±15℃ or

specified by customer


Contact point maximum capacity
TH serial protectors can perform 10,000 times of connection and disconnection protection under the following

conditions.

Voltage

24V-DC

125V-AC

250V-AC

Current

12A

8A

5A

Product size

Type

L

W

H

KI67

15.0±0.4

6.5±0.2

3.1±0.1

Passed certifications

CQC VDE UL
