288W 24V DC Flexible LED Strip Lights RGB Remote Controller

Speed Adjustable Seven Color Jumpy Change RGB LED Controller B 6Keys 12A 24V DC

Description:

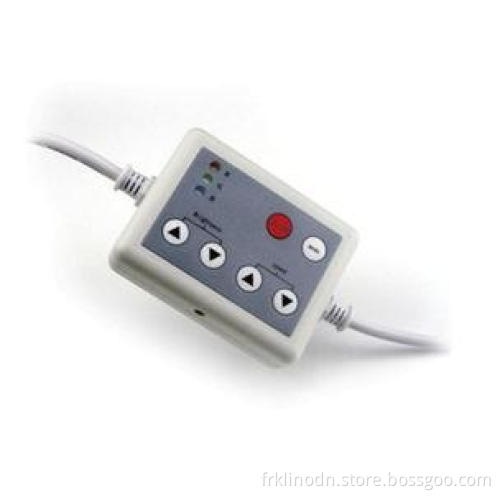

6-key LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection , simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change. Total 11 modes for your choice.

288W 24V DC Flexible LED Strip Lights RGB Remote Controller 3 Channels , LED RGB Controller

Technical parameters

● Working temperature: -20-60 ℃
● Supply voltage: DC5V, 12V, 24V <optional> (for orders specify voltage)
● Output: 3 channels
● Connecting mode: common anode or common cathode
● External dimension: L89.5ΧW85ΧH28.5 mm
● Net weight: 97g
● Gross weight: 133g
● Static power consumption: <1 W
● Output current: <4 A (each channel)
● Output power: 5 V: <60W, 12V: <144W, 24V: <288W

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between connecting wire before you turn on the power
2. Standard color changes as follows:

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Competitive Advantage:

1. Control conveniently, Simple to use

2. Output low ripple and noise

3. Two year warranty
4. Average working no trouble ＞50, 000 hours
