Timeshift Terrestrial HD DVB-T DVB-T2 Digital Receivers, US

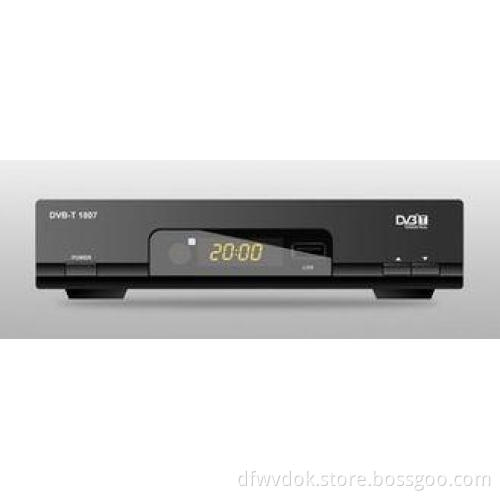

Fully SD / HD DVB-T DVB-T2 Digital Receiver Terrestrial Receivers With PVR Ready Function

DVB-T2,1807, PVR ready function via USB 2.0,V1.31 version compliant

Description:

1. Fully SD/HD DVB-T(ETSI EN 300 744)/T2(ETSI EN 302 755) compliant,support full HD 1080p

2.Support SD/HD MPEG2 and MPEG4 AVC H.264

3.Auto and manually scan all available TV and radio channels

4.Powerful and highly effective 7-day EPG function

5.Multi-language menu,subtitle and audio output supported

6.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

7.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.

8.Support parental local and Teletext

9.Easy to use and attractive menu

10.Support various media files,including music,photo and movie files

Specifications:

DVB-T2 Tuner

IF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 860MHz

Bandwith: 7/8MHz

Input level: -83dBm

Signal input: IEC-type female

Chipset:

NOVATEK78316

Mpeg transport stream and A/V decoding

Video standard: MPEG-4 AVC/H.264 HP@L4

SCART video model CVBS/RGB (for Europe)

Aspect ratio: 4:3, 16:9

Video resolution: 576i, 576p, 720p and 1080i

Audio standard: ISO/IEC 14.496-3,AAC, AAC+, dolby digital AC3

Audio mode: mono, dual-channel, stereo

Multimedia format:

Picture: JPEG

Audio: MP3

Video: DivX

Front panel

Display LED display

USB firmware upgrade PVR and multimedia playback

Channel decoding

Standard: DVB-T2

Demodulation: QPSK, 16QAM, 64QAM

FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic

Guard: 1/4,1/8,1/16,1/32

Mode: 2K, 8K

Demultiplexer

Standard ISO/IEC 13818-1; ARIB STB-B10

Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel)

Rear panel output

HDMI x1

Loop through output: IEC-type, connector, single tuner

TV SCART x 1 (Optional)

VCR SCART x 1 or YpbPr RCAX3 (Optional)

Coaxial: RCAX1

Composite x1

L/R audio RCAX2
