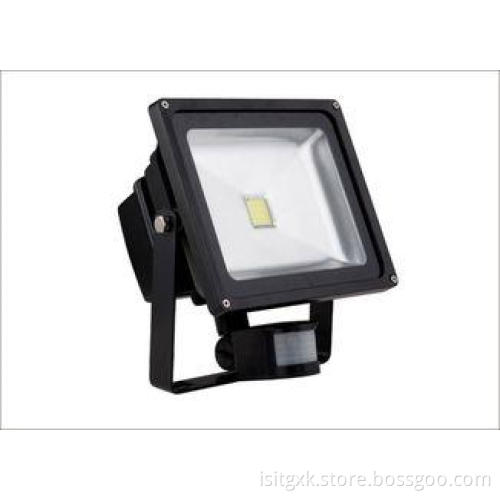

High Lumen 20w Waterproof PIR LED Flood Lights With Isolate

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen,China

Product Description

20W PIR sensor LED Flood light,Epistar/Bridgelux LED Chip,3 Years Warranty,waterproof isolated LED driver,IP65 waterproo

Quick Detail:

►Model Name: YC-FL-20W-01

►CCT: 2700 ~6500K

►CRI: Ra> 80

►Induction Angle:140°

►Induction Distance:5-8m

►Power Consumption:20W

►Input Voltage: AC85 ~ 265V

►Sensor mode:infrared sensor

►LED Brand:Epistar/Bridgelux

►Material: Aluminum

►Warranty:3 Years

Product feature:

►High-purity aluminum reflector encapsulated integrated LED light source ensure

perfect radiation angle, huge lighting area
►Super heat-removal function, unique designed heat conductivity stuff can enhance

heat conductivity rate for LED and radiator.
►High efficiency and wonderful photo curve technology, using various kinds of methods

for the light distribution.

►The main part of the lamp body adopts high-pressure die-casting aluminum crust,

which can make our products strong enough to prevent the impact and corrosion.
►High intensity toughened glass cover with special treatment, good transmission and

ultraviolet radiation function.

Specifications :

Item Number	YC-FL20W-02	Luminance	2250±50lm
Beads type	COB	Color index	Ra > 80
Lamp Material	Cast Aluminium	CCT	2700-6500K
Brand chips	Epistar/Bridgelux	IP Rating	IP65
Input Voltage	85~265V	Storage temperature	-20°C-45°C
Frequence	50/60HZ	Surface temperature	50°C (test in 25°C )
Power Fator	>0.9	Lifespan	50,000 hours
Power consumption	30W	Lamp Size	L115W87H81mm
Power Efficiency	>85%	Box Size	L125W98H135mm
Beam Angle	120°	Box Weight	0.62KG

Lamp Size:

Package information:

	Box			Carton
Item Number	Measurement(mm)	Gross weight	Pcs/box	Measurement(mm)	Gross weight	Pcs/carton
YC-FL-10W-01	L185W158H130	1.24 kg	1	L495W390H290	16.2 kg	12

Applications:

Lighting for building,bridges, sculptures,billboards,parking
