Basic Info

Place of Origin:	Shenzhen,China

Product Description

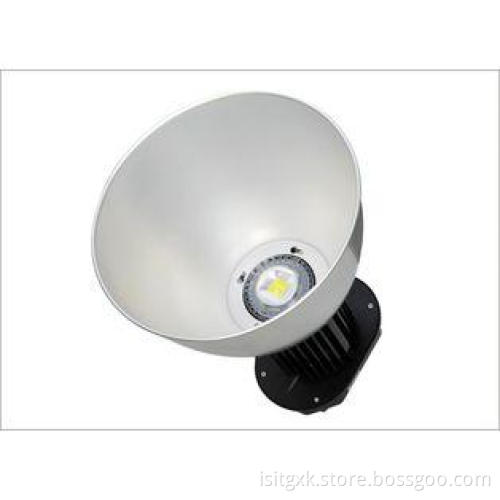

200W COB Bridgelux 45Mil Industrial LED High Bay Lighting For Warehouses

Quick Detail:

Model Name: YC-HB200-01
Color temperature:3000K/4000K/5000K/6500K
CRI: Ra> 80
Thermal Conductivity of thermal grease: >5.0W/m.k
Beam Angle: 45° /90°/ 120°
Input Voltage: AC90 ~ 305V
Proection Rate: IP42/IP65
LED Brand: American Bridgelux 45mil
Lumen Effiency:above 90 lumens/watt
Warranty: 5 Years
Finishing: Silver

Description:

200W, Bridgulux Chip, Mean Well Driver COB LED High Bay Light has a unique shape, streamlined and stylish lines which integrate perfectly in modern architecture with highly ornamental value.

Product features:

►High Ra COB LED with Bridgelux LED chip,ultra bright

►IP65 rating are available for various applications

►Highly energy saving, 60% over metal halide lamp

►AC90V to 305V Input voltage are available to meet different installation condition.

►Adopt Taiwan Meanwell power to ensure the lamp work better

►Unique patented thermal management design to ensure excellent heat dissipation

and long lifespan of LEDs

►Changeable beam angle and CCT 2700K-6500K available

►Extremely light weight to ensure safety use and installation

►Available with aluminum reflectors with different beam angles

►Environmental-friendly, no UV, no Mercury or other Hazardous substances

Certification:

Parameters:

Lamp Material	Aluminum	Colr index	Ra>80
Beads type	COB	CCT	2700~6500k
Brand chip	Bridgelux	IP Rating	IP42/IP65
Input voltage	90~305V	Storage temperature	-20°C~+45°C
Frequence	47~63Hz	Surface temperature	50°C(test in 25°C)
Power Factor	>0.95	Lifespan	50,000 hours
Power consumption	200W	Lamp Size	Φ500*565mm
Power efficiency	>92%	Box Size	25.525.543.5cm
Beam Angle	45°/90°/120°	QTY/Box	1PCS
Luminance	17500±50lm	Box Weight	7.3KG

Lamp size:

Package of reflector :

Reflecotr angle	45°	90°	120°
Lamp size	Φ420*250mm	Φ500*190mm	Φ500*140mm
Box size	444440cm	535325cm	535334cm
Box weight	2KG	2.2KG	2.3KG
QTY/Box	10PCS	10PCS	10PCS

Product Details :

Application:

Warehouses & Production workshops
Shopping malls & Indoor stadiums
Toll and petrol stations and other industrial and commercial lighting purposes
