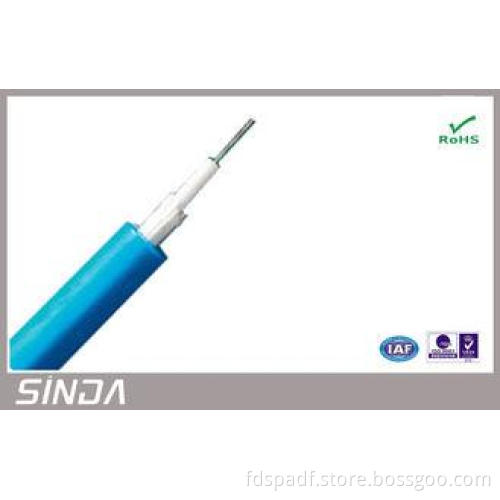

Waterproof Central Loose Tube Indoor / Outdoor Fiber Optic Cable GJFXTKV

Central Loose Tube Indoor / Outdoor Fiber Optic Cable GJFXTKV

Quick Detail:

Product Name: Gentral Losse Tube In/out optical cable

Model: GJFXTKV

Number of Conductors : ≥ 10

Certification : ISO, ROHS, UL,SGS,ATC

Sheath : PE

Package : Wood Drum

Operating Temperature : -40~+60gree

Fiber sort : Single and Multi mode

Fiber brand : YOFC, CORNING,FUJIKURA

Fiber count : 2-12

Description:

Filler protect bube fiber .
E-glass member potentiate.
Fiber Count:2~12

Applications:

Adopted to indoor or outdoor distribution.
Small cable size , lightweight.
With excellent waterproofing performance.

Specifications :

Technical Parameters:
Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
2	6.0	45	600	200	1000	200	20D	10D	-20+60
4	6.0	45	600	200	1000	200	20D	10D	-20+60
6	6.0	45	600	200	1000	200	20D	10D	-20+60
8	6.0	45	600	200	1000	200	20D	10D	-20+60
10	6.0	45	600	200	1000	200	20D	10D	-20+60
12	6.0	45	600	200	1000	200	20D	10D	-20+60

Optical Characteristics
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C,D)		B1.1:Conventional fiber
		G.653		B2: Zero dispersion shifted
		G.654		B1.2 :Cut-off wavelength shifted
		G.655		B4: Main technical data for positive dispersion shifted single-mode fiber

Competitive advantages:

Our products conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.

Our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.

We wish to create better future of optical communication industry jointly with both new and existing customers.
