LC APC / ST Fiber Optic Patch Cord Single mode Telcordia GR
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

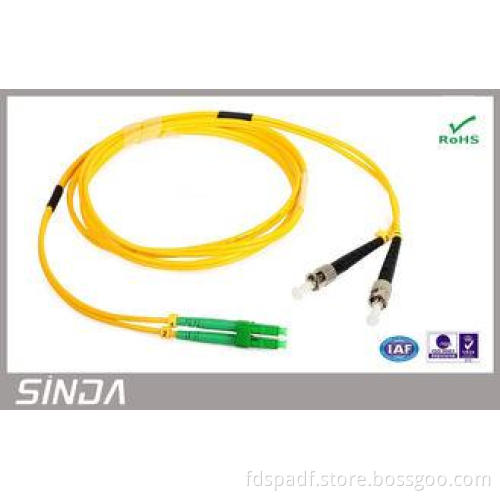

LC APC/ ST Fiber Optic Patch Cord Single mode Telcordia GR-326-CORE
China Manufacturer LC/ST Fiber Optic Patch Cord Singlemode 9/125
Quick Details :
Cable Type: Simplex, Duplex, Bundle, Ribbon
Fiber Type : SM/MM
Length : Per customer's Request
Polish : UPC/APC/PC
Insertion Loss : ≤0.3dB
Return Loss : >= 50db
Connector Type : FC,ST,SC,LC, MPO, MU ect...
Packing Details: Zip plastic bag
Description:
Low insertion loss and back reflection loss
Good echangeability
Good Durability
High temperature stability.
Standard: Telcordia GR-326-CORE
Precise connector
Excellent mechanical capability
Patch cords accord with bellcord GR-326 ,ISO9001,ROHS
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
|
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
