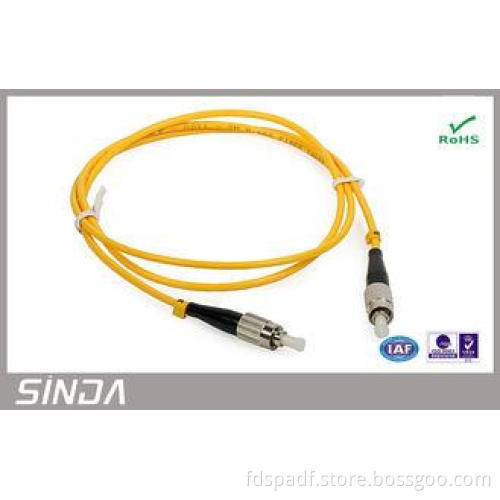

Fiber Optic fc-fc patch cord Singlemode 9 / 125 Simplex with APC Polishing
FC/FC Fiber Optic Patch Cord Singlemode 9/125 Simplex
Quick Detail:
Compliance with the Standard of IEC and YD/T1272
High Return Loss and Low Insertion Loss
High Reliability and Stability
Good Repeatability and Interchangeability
Various Types of Connectors: FC, SC, ST, MU, LC, MTRJ, MPO, E2000, etc.
PC, UPC , APC Polishing
Single mode, Multi-mode Versions
Ribbon Pigtail Cable,Bunchy Pigtail Cable,Waterproof Pigtail Cable
Multiple option of Optic Cable Core
Simplex, Twin cores, 4 Cores, 6 Cores, 8 Cores, 12 Cores, 24 Cores, 48 Cores
Description:
FC Fiber Optic Patch Cord
Multioption of fiber cable core
Telecommunication network
Testing equipment
Applications:
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications :
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
|
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-40C to 85C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Competitive advantages:
