LC PC Multimode Fiber Optic Patch Cord With High Return Loss , APC Patch Cord

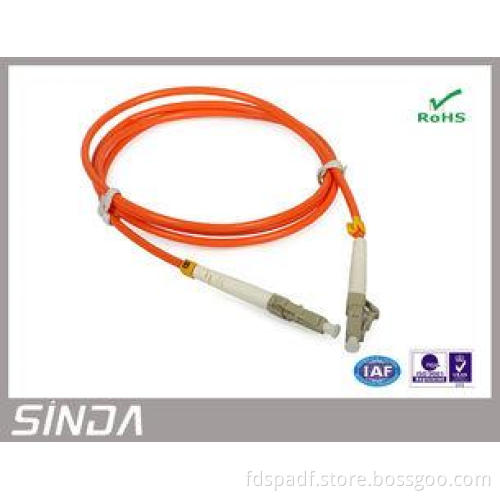

LC/PC-LC/PC Multimode Fiber Optic Patch Cord With High Return Loss
Quick Detail:
Good interoperability;
Low insertion loss;
Fiber diameter: Φ0.9, Φ2.0, Φ3.0;
Ceramic ferrules,PC,UPC and APC polishing;
PVC or LSZH jacket cable.
Connector Available: FC,SC,ST.LC, MTRJ,MPO,MU ect...
Description:
Fiber optic patch cord is one jof the most commom components connecting from the equipment to the fiber optic lind .It is mormally used between the optical line teminal with the optical cable terminal box with thick protection layer.
Using high precision ceramic ferrule
Rubbing exactitude and testing completelly
Low insertion loss and high return loss
High stability and repeat
Be according with the telcordia GR-326-CORE standard
Ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule
Applications:
CATV,LAN,MAN,WAN,FTTH,FTTB;
Fiber-optical communications system;
Test & Measurement,Industry,Medical.
Lucent corning fiber optic cable
Order information:
SC/ PC – SC/ PC/ SM/ 2C/ 3.0 – 1M
1 2 1 2 3 4 5 6
1.Connector type:FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA;
2.Ferrule End-face:PC,APC;
3.Fiber Type:Single-mode(SM:9/125um),Multimode(MM:50/125um or 62.5/125um);
4.Cable Diameter:3.0mm,2.0mm,0.9mm;
5.Cable Diameter:3.0mm,2.0mm,0.9mm;
6.Length:1,2,3 meter or sustomized length;
7.Cable type:PVC,LSZH,OM3,OFNR,OFNP,Plenum
Specifications :
|
Item |
Mode Type |
PC |
SPC |
UPC |
APC |
|
Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.20dB |
|
MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
|
|
Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
|
MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
|
|
Repetition Test |
Additional Loss≤0.1dB,Reture Loss Variability<5dB |
||||
|
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Reture Loss Variability<5dB |
||||
|
Operating Temperature |
-40°C~+75°C |
||||
|
Storage Temperature |
-40°C~+85°C |
||||
|
-Option:CableDiameters;0.9,2mm,3mm&others |
|
|
|
||
|
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR |
|
||||
