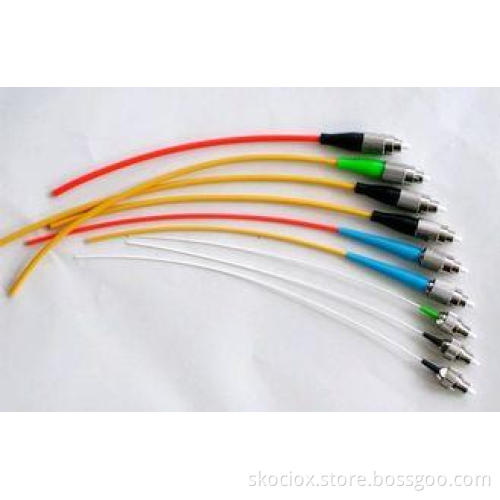

E2000, MPO Optional FC Fiber Optic Pigtail for Video Transm

E2000, MPO Optional FC Fiber Optic Pigtail for Video Transmission , Data Transmission

Features:
Low insertion loss and high return loss
Good exchangeability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard

Application:

Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): < 0.2 (UPC) , < 0.3 (APC)
Return Loss (dB): > 50 (SM/UPC) , > 60 (SM/APC), 35(MM/UPC)
Exchangeability: < 0.2 dB
Tensile Strength: < 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: <50 um, <100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8degree �± 0.5 degree (APC)

Ordering Information:
FC/ UPC-FC/ UPC-SM- DX-3.0-2M

1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: DX means Duplex / SX means Simplex
5. Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customize
