RoHS Compliant SC Simplex Fiber Optic Adapter with Flange ,
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Ningbo, China (Mainland) |
|---|

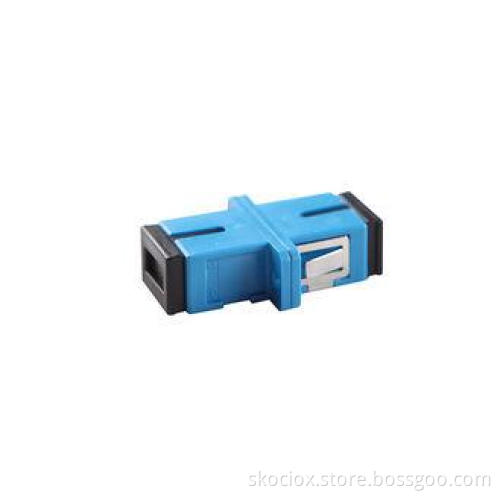

RoHS compliant SC Simplex Fiber Optic Adapter with Flange, coupling sleeve
Quick Detail:
- SC simplex adapter
- With flange
- Singlemode PC, singlemode APC and multimode PC available
Description:
SC simplex adapter with flange is used to couple one connector to another same type. These adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism.
The flanged SC adapters are regularly fixed by two screws, and available in 4 colors as per different mode types.
Features:
- Telcordia, ANSI, TIA/EIA standard compliance
- High precision alignment
- Precision Zirconia split sleeve
- Low insertion and return loss
- High-dense type with short flange
Order Guide:
|
Product Description |
Part Number |
Housing Color |
|
SC Simplex Single-mode Without Flange |
AD-SCSNF-SM |
Blue |
|
SC/APC Simplex Single-mode Without Flange |
AD-SCSNF-SMA |
Green |
|
SC Simplex Multimode Without Flange |
AD-SCSNF-MM |
Beige |
|
SC Simplex OM3 Without Flange |
AD-SCSNF-OM3 |
Aqua |
Applications:
- Fiber optic transmission system
- CATV networks
- Local Area Network
- FTTH and FTTX
- Testing equipment
Specifications:
|
Connector Type |
LC, SC, FC, MU, ST, MTRJ, Hybrid |
|
|
Fiber Type |
Singlemode |
Multimode |
|
Insertion Loss |
≤0.2dB |
|
|
Return Loss |
PC≤-45dB; UPC≤-50dB; APC≤-60dB |
≤-30dB |
|
Durability |
≤0.2dB, after 1000 times |
|
|
Operation Temperature |
-40℃~+75℃ |
|
|
Storage Temperature |
-40℃~+85℃ |
|
Competitive Advantage:
- Full range of adaptors available
- Fast delivery time
- Custom colors available
