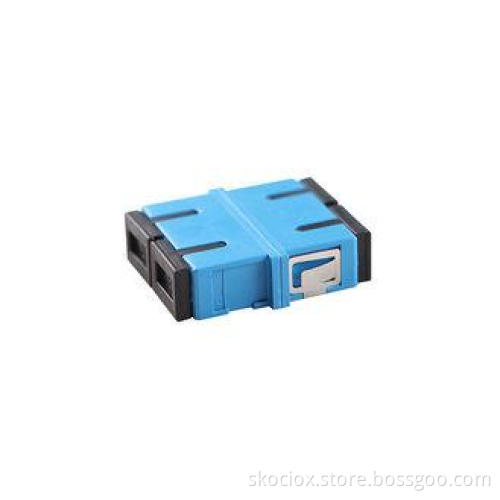

SC / PC Single Mode Duplex Fiber Optic Adapter with Short F
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Ningbo, China (Mainland) |
|---|
Quick Detail:
1. SC Singlemode duplex adapter
2. With short flange
3. Singlemode PC adapter in blue color
SC / PC Single Mode Duplex Fiber Optic Adapter with Short Flange , Fiber Optic Coupler
Description:
FOCONEC offers a broad range of SC duplex adapters in plastic or metal housing. All adaptors have the type with or without flanges available for different installation requirement, and come with a choice of zirconia split sleeves to keep perfect contaction of two connectors.
Our SC adapters without flange are suitable for installation with limited space, and fixed by the metal shutters.
Adaptor housing is available in a variety of colors.
Features:
1. Telcordia, ANSI, TIA/EIA standard compliance
2. High precision alignment
3. Precision Zirconia split sleeve
4. Low insertion and return loss
5. High-dense type with short flange
Order Guide:
|
Product Description |
Part Number |
Housing Color |
|
SC Duplex Single-mode Without Flange |
AD-SCDNF-SM |
Blue |
|
SC/APC Duplex Single-mode Without Flange |
AD-SCDNF-SMA |
Green |
|
SC Duplex Multimode Without Flange |
AD-SCDNF-MM |
Beige |
|
SC Duplex OM3 Without Flange |
AD-SCDNF-OM3 |
Aqua |
Specifications:
|
Connector Type |
LC, SC, FC, MU, ST, MTRJ, Hybrid |
|
|
Fiber Type |
Singlemode |
Multimode |
|
Insertion Loss |
≤0.2dB |
|
|
Return Loss |
PC≤-45dB; UPC≤-50dB; APC≤-60dB |
≤-30dB |
|
Durability |
≤0.2dB, after 1000 times |
|
|
Operation Temperature |
-40℃~+75℃ |
|
|
Storage Temperature |
-40℃~+85℃ |
|
Competitive Advantage:
1. Full range of adaptors available
2. Fast delivery time
3. Custom colors available
Tag: Fiber Optic Adapter, Fiber Optic Coupler, Passive Component, Fiber Connectivity
