LC / APC Single Mode Quad Fiber Optic Adapter , 4 Channel A
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Ningbo, China (Mainland) |
|---|
Quick Detail:
- LC Quad adapter, 4 ports
- SC installation
- With flange
- SM APC green

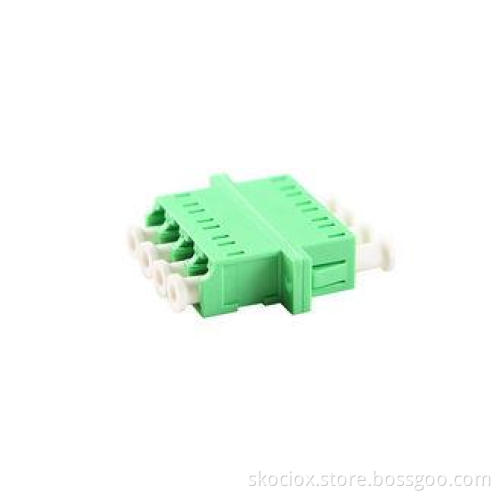

LC / APC Single Mode Quad Fiber Optic Adapter , 4 Channel Adapter with Flange
Description:
FOOCNEC offers quad LC adapters for high density fiber optic connectivity and cabling system in data centers.
All quad LC adapters with high quality PBT housing, in SC-footprint, could be fixed on the cutting holes for SC duplex adaptors.
Features:
- High precision of mechanical dimensions
- Excellent compatibility, reliability & stability
- Single-mode and multimode available
- With or without flange available
- NTT, Telcordia, ANSI, TIA/EIA standard compliance
Order Guide:
|
Product Description |
Part Number |
Housing Color |
|
LC Quad Single-mode With Flange |
AD-LCQF-SM |
Blue |
|
LC/APC Quad Single-mode With Flange |
AD-LCQF-SMA |
Green |
|
LC Quad Multimode With Flange |
AD-LCQF-MM |
Beige |
|
LC Quad OM3 With Flange |
AD-LCQF-OM3 |
Aqua |
Applications:
- Fiber optic transmission system
- CATV networks
- Local Area Network
- FTTH and FTTX
- Testing equipment
Specifications:
|
Connector Type |
LC, SC, FC, MU, ST, MTRJ, Hybrid |
|
|
Fiber Type |
Singlemode |
Multimode |
|
Insertion Loss |
≤0.2dB |
|
|
Return Loss |
PC≤-45dB; UPC≤-50dB; APC≤-60dB |
≤-30dB |
|
Durability |
≤0.2dB, after 1000 times |
|
|
Operation Temperature |
-40℃~+75℃ |
|
|
Storage Temperature |
-40℃~+85℃ |
|
Competitive Advantage:
- Good compatibility
- High precision of mechanical dimensions
- High reliability & stability
- Fast delivery time
Tag: Fiber Optic Adapter, Fiber Optic Coupler, Passive Component, Fiber Connectivity, Fiber Coupling Sleeve
