Mini Manual Hand Ratchet Crimping Plier / cable cutter for

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Ningbo, China (Mainland)

Product Description

Mini Manual Hand Ratchet Crimping Plier / cable cutter for insulated terminal

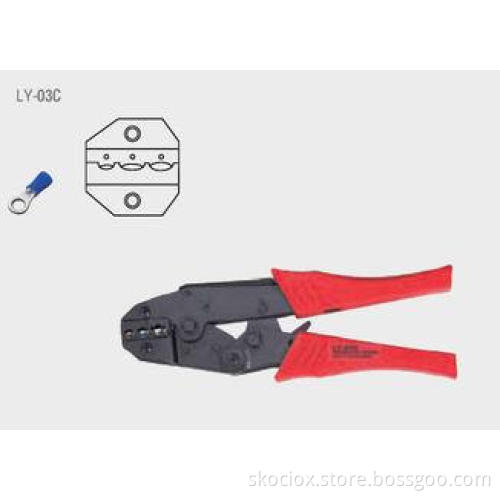

HS-30J / HS-30JC / LY-03C

■ The components of the ratchet crimping tools are made of special steel.
■ Designed according to human factors engineering, it can save 50% energy when crimping.
■ Precise crimping die sets and integral lock with self releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
■ Accurate adjustment before ex works delivery
■ Due to best handle grasping position, light and compact structure and handle design ensure perfect crimping effect.

Tool Specificarions	HS-30J	HS-30JC	LY-03C
Capacity	0.5-6.0 mm²	1.0-6.0 mm²	1.0-6.0 mm²
AWG	22-10 AWG	20-10 AWG	20-10 AWG
Length	230 mm	230 mm	230 mm
Weight	0.6Kg	0.6Kg	0.6Kg

HS-1

Range of Application:
For crimping the terminal of
aviation plug-in

Tool Specificarions

Capacity	1.0-2.5 mm²
AWG	20-14 AWG
Length	230 mm
Weight	0.6Kg

HS-07FL

Range of Application:
For 0.5-2.5mm²
Flag Type
female receptacles Insulated
Terminals

Tool Specificarions

Capacity	0.5-2.5 mm²
AWG	20-14 AWG
Length	230 mm
Weight	0.6Kg

HS-03B / HS-03BC

For Non-Insulated tabs and
receptacles

Tool Specificarions	HS-03B	HS-03BC
Capacity	1.5-6.0 mm²	0.5-6.0 mm²
AWG	16-10 AWG
Length	230 mm	230 mm
Weight	0.6Kg	0.6Kg

HS-05FL / HS-FL

Range of Application:
For 4.8-6.3mm²
Flag Type
receptacles

Tool Specificarions	HS-05FL	HS-FL
Capacity	4.8-6.3 mm²	4.8 mm²
AWG
Length	230 mm	230 mm
Weight	0.6Kg	0.6Kg

HS-11

Range of Application:
For Clamp of galvanothermy
film terminal

Tool Specificarions
Capacity	4.0 mm²
AWG	12 AWG
Length	230 mm
Weight	0.6Kg
