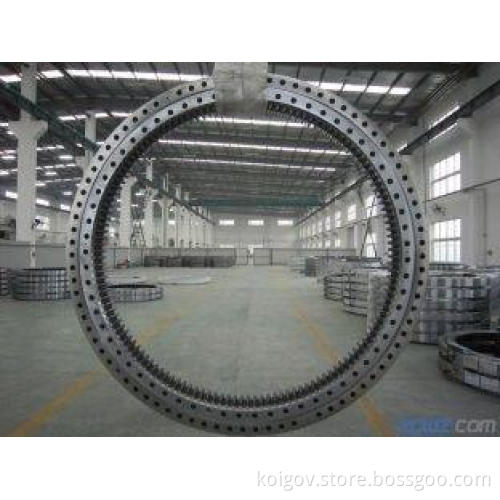

High-capacity Lifting Equipment -single row crossed roller slewing bearing(602~4726mm)

OEM services
Buyer label offered
Compact in design , light in weight
Material : 50Mn , 42CrMo
slewing bearings

OD:602~4726mm

Feature:

The single row crossed roller slewing bearing is composed of two seat rings, which design in compact structure and light weight, the clearance is small when assembly, so need high precision. The roller are 1:1 cross arranged, it can bear the axial force, tilting moment and relatively large radial force. It is widely used for hoisting, transportation, construction machinery, and the military products.
Capacity:


Maximum Thrust: 105,060 KN (23,630,000 lbs)
Maximum Moment: 110,000 KN-M (81,136,000 ft-lbs)

Gearing: Non-gear, External Gear, Internal Gear

Other types:

External gear
DL
mm		 Dimensions Mounting Dimensions weight
kg
D
mm		 d
mm		 H
mm		 D1
mm		 D2
mm		 n Ø
mm		 dm
mm		 L
mm		 m
mm		 De
mm		 z
111.25.500 602 398 75 566 434 20 18 M16 32 5 629 123 80
112.25.500 6 629 102
111.25.560 662 458 75 626 494 20 18 M16 32 5 689 135 90
112.25.560 6 689 112
111.25.630 732 528 75 696 564 24 18 M16 32 6 773 126 100
112.25.630 8 774 94
111.25.710 812 608 75 776 644 24 18 M16 32 6 851 139 110
112.25.710 8 854 104
111.28.800 922 678 82 878 722 30 22 M20 40 8 966 118 170
112.28.800 10 968 94
111.28.900 1022 778 82 978 822 30 22 M20 40 8 1062 130 190
112.28.900 10 1068 104
111.28.1000 1122 878 82 1078 922 36 22 M20 40 10 1188 116 210
112.28.1000 12 1186 96
111.28.1120 1242 998 82 1198 1042 36 22 M20 40 10 1298 127 230
112.28.1120 12 1306 106
111.32.1250 1390 1110 91 1337 1163 40 26 M24 48 12 1450 118 350
112.32.1250 14 1453 101
111.32.1400 1540 1260 91 1487 1313 40 26 M24 48 12 1606 131 400
112.32.1400 14 1607 112
111.32.1600 1740 1460 91 1687 1513 45 26 M24 48 14 1817 127 440
112.32.1600 16 1821 111
111.32.1800 1940 1660 91 1887 1713 45 26 M24 48 14 2013 141 500
112.32.1800 16 2013 123
111.40.2000 2178 1825 112 2110 1891 48 33 M30 60 16 2269 139 900
112.40.2000 18 2264 123
111.40.2240 2418 2065 112 2350 2131 48 33 M30 60 16 2493 153 1000
112.40.2240 18 2498 136
111.40.2500 2678 2325 112 2610 2391 56 33 M30 60 18 2768 151 1100
112.40.2500 20 2776 136
111.40.2800 2978 2625 112 2910 2691 56 33 M30 60 18 3074 168 1250
112.40.2800 20 3076 151
111.50.3150 3376 2922 134 3286 3014 56 45 M42 84 20 3476 171 2150
112.50.3150 22 3472 155
111.50.3550 3776 3322 134 3686 3414 56 45 M42 84 20 3876 191 2470
112.50.3550 22 3890 174
111.50.4000 4226 3772 134 4136 3864 60 45 M42 84 22 4330 194 2800
112.50.4000 25 4345 171
111.50.4500 4726 4272 134 4636 4364 60 45 M42 84 22 4836 217 3100
112.50.4500 25 4845 191
