6 Ways Micro Capsule Slip Ring

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 2 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000pcs per month
Payment Type:	L/C,T/T,Western Union
Transportation:	Ocean,Land,Air

Product Description

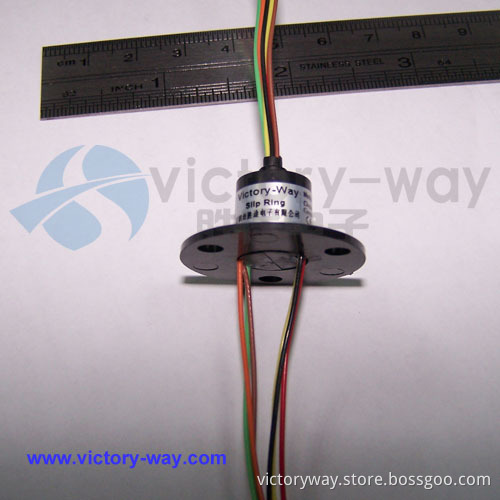

MC slip ring capsule is a standard,off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor to distinguish, with double contacts & double precision roller bearings, it utilizes 90°V-groove rings to provide smoother running, lower torque and lower electrical noise. Flame-retardant plastic shell,6, 8, and 12 circuit models for Power and /or signal.

A .)Specification:
Channels : 1~6 Ways
Voltage : 240V AC/DC
Current Rating : 2A/Ring
Speed : 300PRM
Insulation Resistance : 1000MΩ@500VDC
Dielectric Strength : AC250V@60Hz, 60S
Electrical Noise : 60 milliohms MAX @ 5~10 rpm,50milliamps,6V DC
Lead Size/Type : AWG28 Sliver plated coppe,Type ET Teflon
Lead Lengths : 250mm
Operate Temp.: -20℃~+80℃
Storage Temp.: -30℃~+90℃

B.)Feature:
● Compact miniature design, small size, fit for harsh space;
● Double precision roller bearings for lower torque & longer life;
● Signal and power Can be combined to deliver in same slip ring;
● More installation flanges for option.

C.)Application:
● CCTV monitoring system;
● Medical equipment;
● Robots;
● Laboratory equipment.

D.)Option:
● Higher speed;
● Metal shell;
● Available connector and Heat-shrink tube;
● Length of lead wires can be customized.
