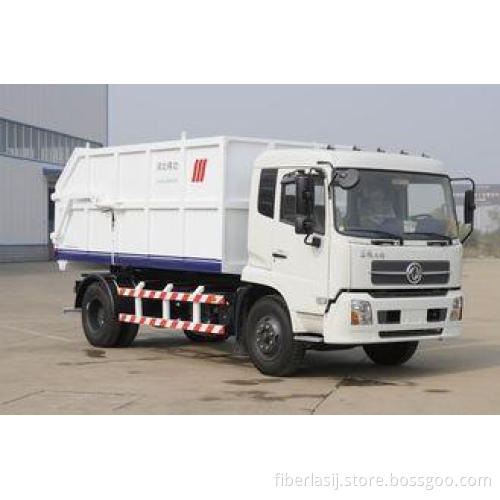

7.7ton Small Garbage Collection Vehicles 4x2 For Waste Tran

7.7ton Small Garbage Collection Vehicles 4x2 For Waste Transfer Station

Quick Details:

Chassis:DFL1160BX4(DONGFENG)

Engine:ISDe210-40 (155kW, 6.7L)

Tread:1880/1800mm

Fuel type:Diesel

The main use of the buried type compression transfer station, vertical type compression transfer station and preloading type waste transfer station and so on.Products for box full seal dumper structure, be controlled by full hydraulic pressure, consist of the chassis, deputy frame, carriage and electric hydraulic control system, etc.

Technical characteristics :

• Vehicle chassis by dongfeng, Jiefang, Sinotruk, domestic well-known manufacturers of the latest II class chassis refitting, reliable performance;
• Cabinet with fully sealed design ,with a “B-type”silicon rubber seal and the real of the large capacity storage tank “double”seal structure,no secondary pollution during waste transportation;
• Large volume and a large section size,high vehicle transportation efficiency ,and good compliance with waste disposal equipment;
• Vehicle load lifting mechanism was based on the size of the cylinder were used after the lifting structure,triangular zoom in lifting the structure,before the lifting cylinder structure in several ways,reasonable structure,reliable performance;
• Hydraulic drive deyice,the main electrical and hydraulic components are famous brand products,with hydraulic control a single dual-controlled electro- hydraulic control and a variety of configurations,the overall performance of the product quality.
• Products are all structure after blasting, derusting, spraying treatment, painting for the internationally renowned Dutch Nobel or Zhongyuan guanxi brand marine heavy protective type anticorrosive paint with good anticorrosion.

Scope of application:

The products are mainly applied to the buried waste transfer station, vertical type waste transfer station, horizontal preloading type waste transfer station, used to transport precompression garbage to improve the garbage transfer efficiency, and ensure good environmental protection on the way.

Specifications:
