ISO Skeletal or Flatbed type Tank Container Trailer Chassis
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

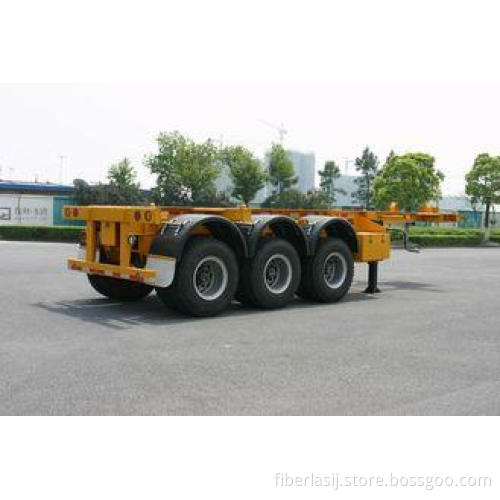

ISO Skeletal or Flatbed type Tank Container Trailer Chassis 40ft / Semi-Trailer
Quick Details
- Use: Truck Trailer
- Type: Semi-Trailer
- Material: Steel
- Size: 8500x2480x1585
- Max Payload: 35000 kg
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Hongzhou
- Model Number: HZZ9401TJZ
- Components: Trailer Plugs
- Total mass (kg): 40000
- Kerb weight (kg): 5000
- Payload (kg): 35000
- Wheel base (mm): 4160+1310+1310
- Tread (Front/Rear): 1830/1830/1830
Specifications
Basic specs for container trailer:
1.Total payload:35000kg
2.Axles:Rear 3 FUWA
3.Trailer type:Skeletal container semi-trailer
Basic specs for 40ft Carbon-steel skeletal container trailer chassis (Rear 3 FUWA axles):
1. Total payload: 35000kg
2. Axles: FUWA or BPW
3. Chassis material: Carbon-steel
4. ABS System: with
5. Landing leg: JOST or KIC
6. Trailer type: Skeletal container semi-trailer
7. Chassis specs: Can load one or two standard container or tank container
Basic technical parameters of 40ft container transport semi-trailer chassis:
Purpose of this trailer
This is the special semi-trailer for TANK CONTAINERS. (with Flatbed type and Skeleton type)
Advantages
Reliable, long life and easy maintenance characteristics. In addition, in line with international maritime standards,
with self-weight light.
Others
We produced the tank container semi-trailer in accordance with the chinese standard design.
Specialfication Of Container Semi-trailer
| Product | Flat-bed type | Skeleton type | Skeleton type |
| Model | HZZ9400TJZP | HZZ9400TJZ | HZZ9280TJZ |
| Size | 40 feet | 40 feet | 20 feet |
| Tyre |
11.00R-20, Rail tyre |
11.00R-20, Rail tyre |
11.00-20, Nylon tyre |
| Axle | BPW | BPW |
FUWA (chinese brand) |
| Kingpin | 50# JOST | 50# JOST | 50#JOST |
| Landing leg | KIC | KIC | KIC |
| Frame material | Carbon steel (Q345) | Carbon steel (Q345) | Carbon steel (Q345) |
| Container lock | 12 pieces | 12 pieces | 4 pieces |
| Tyre holder | 2 pieces | 2 pieces | 1 piece |
| Tool box | 1 piece | 1 piece | 1 piece |
| Braking system | Dual braking system | Dual braking system | Dual braking system |
| Outer dimension (mm) | 12391x2480x1585 | 12390x2480x1530 | 7500x2480x1690 |
| Wheel base (mm) | 7070+1350+1350 | 7070+1350+1350 | 4250+1350 |
| Tare weight (kg) | 8000 | 6920 | 4250 |
| Payload (kg) | 32000 | 33080 | 24000 |
| Total weight (kg) | 40000 | 40000 | 28250 |
| Number of spring steel plate | 8/8/8 | 8/8/8 | 7/7 |
| Number of axles | 3 | 3 | 2 |
| Number of tyre | 12 | 12 | 8 |
