Floor Standing Meeting Room Stand LCD Video Wall Display /
  • Floor Standing Meeting Room Stand LCD Video Wall Display /
Floor Standing Meeting Room Stand LCD Video Wall Display /

Floor Standing Meeting Room Stand LCD Video Wall Display /

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

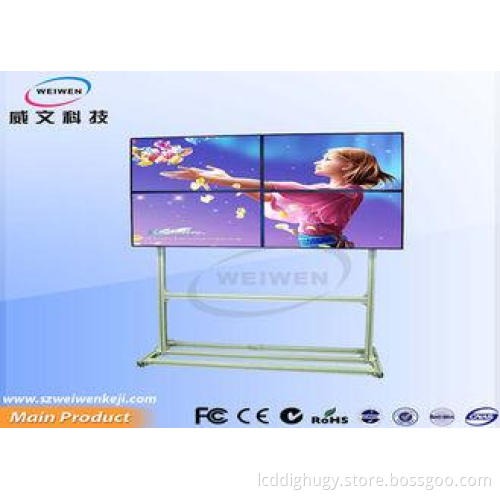

Floor Standing Meeting Room Stand LCD Video Wall Display / Monitors Full HD


Quick Detail:


1. One year warranty for whole product for free.
2. Free software to combine screen easily,there is Chinese and English language.
3. Screen brand:Samsung,LG
4. Splitter for 1 input 4 output,1 input 8 ouput,1 input 16 output,1 input 24 ouput.
5. DIY quantity for width and height.
6. Support full screen,split screen and any conbination display mode.
7. HDMI/VGA/DVI/RGB singnal input.

8. Size:40” 42” 46” 47” 55” etc.
9. Available to connect to PC,notebook,camera,video and other device.
10. Optional matrix to play contents when different play device.
11. Custmized screen plate and wall frame.
12. Bezel:6.7mm,6.3mm,5.3mm,4.9mm.
13. We could go to your country and help you install.
14. With splicing processor box.

Description:

1. Super narrow bezel design: the narrowest can reach 4.9mm seam, and it truly achieves the seamless.
2. Diversification of the display mode
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Interface type: VGA, DVI and HDMI connected analog signal and digital high-definition signal
9. Modular design according to customer demand (M * N)
10. Support error and compensation function of video wall pictures
11. Excellent display


Specifications:

Panel Size Samsung 46” (5.3mm bezel or 6.7mm bezel)
Aspect Ratio 16:9
Max Resolution Support 1366x768 or 1920*1080
Color 8Bit,16.7M
Brightness (nits) 500cd/M2
Contrast MEGA DCR
Visual Angle (H/V) 178°
Response Time <=6ms
Life(hrs) >60,000(hrs)
Input and output
DVI 1
HDMI 1
D-15 RGB Input(VGA) 1
YUV/YPbPR 1(3xBNC)
S-(YC) 1(2xBNC)
Composite Video Input/(AV) 3(3xBNC)
Composite Video Output 2(2xBNC)
AUDIO INPUT 1
Split Screen Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply AC100V~240V
Maximum Power Consumption 250W
Standby Power Consumption <=3W
Temperature
Working Temperature 0°C-50°C
Working Humidity 20%-80%
Dimension &Application Condition
Dimension 1046.8x591.6x49.5mm
Backlight System LED Direct
Coating Anti-glare Coating
Main Application Conditions Indoor,semi-Outdoor
Video Wall Controller(Built-in each Screen)
Input CVBS 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA 1*D15 port, support SVGA/XGA/WXGA
YPbPr/YCbCr 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
Y/C 2*BNC inputs, support PAL/NTSC all formats
Output LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode Panel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
Engineering software Customized
Working temperature 0-70C
working humidity 5-95% RH
AC voltage power supply 100-240V/50, 60Hz
power consumption Max 300W,according to different Screen models
Dimension 338×295×60(mm)
Weight About 16.5KG



Applications:

1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations:Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
6. Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.


Our advantage:


1. All the materials are all tested, quality assuranced;We select only branded screen,and all are A grade standard or even A + grade standard panel.
2. We are factory,we have our own production line, we produce independently from producing shells to the whole production process, more convenient and comprehensive for quality controlling.
3. We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements.
4. We have a fully professional team, combining designing, processing, production, can be relatively rapidly transfer customer ideas into products.
5. Our first-class service team, able to "we worry what customer worry, think what customers think," and to help all customers to solve all the worries.
