Remote Street Light Intelligent Control System REX-C-IT

REX-C-IT Intelligent Control System

Main Functions:

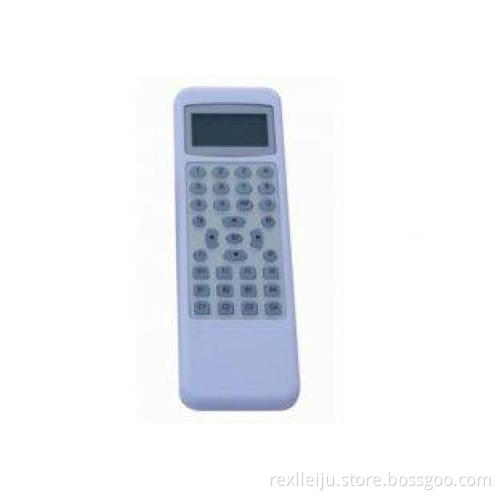

The remote controller can control 15 groups of lights in brightness, color and ON/OFF.It can work together with the wall switch.Instruction for main keys like below:
"IP": set group number
"S1": save and confirm setup of group number
"BR": set brightness value
"S2": save and confirm setup of brightness value
"C1", "C2", "C3", "C4": the preset brightness value by manufacturer
"B1", "B2", "B3", "B4": the preset brightness value by user.The user can adjust the value of them.
"TM": set time for timing off
"OK": save setup

Set group Number: (During installation)
Switch on the power of the light, keep pressing the button on the light, press"IP", choose group number from 1-9, A-F, and press "S1" to save the setup, then loosen the button on the light.

Adjust Brightness: (Take group D for example)
Method 1: press"IP", press"D", press"△", "▽"
Method 2: press"IP", press"D", press"C1", "C2", "C3", "C4"to choose preset birghtness by manufacturer.
Method 3: press"IP", press"D", press"B1", "B2", "B3", "B4"to choose preset brightness by user.(Take "B1"for example, fristly press"B1", then press"BR", input brightness value 01-99, press"S2"to save the setup)
Notice:"0"represents all the 15 groups.If you do not remember which group the lights are in, just use"0".Timing OFF
Press"TM", input time(0010-2350), press"OK"to save the setup.If the input time is 0030, the light will be off 30 minutes later.
RGB control
C1, red.C2, green.C3, blue.C4, mode of color change.F1/F2, adjust the speed of color change(01-99 seconds).
