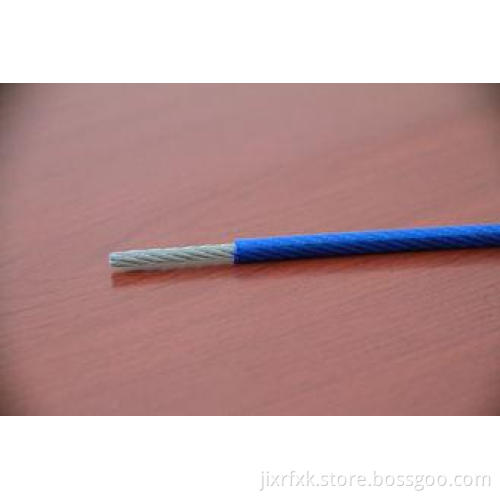

7x19 PVC Coated Steel Wire Rope , DIN / GB / EN12385-4 / AI
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Made in China |
|---|
7x19 PVC Coated Steel Wire Rope , DIN / GB / EN12385-4 / AISI / BS
Quick Detail:
Grade: Galvanized steel wire rope
Structure: 7*19S+FC/7*19S+IWR/7*19W+FC/7*19W+IWR
Diameter: 1- 50mm
Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
Description:
Galvanized steel wire rope
1. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
2. Diameter: from 0.15 mm to 50mm
3. T/S: 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
4. Packing: Wooden box and bagging, or according to customers' request.
5. Delivery date: 30days after the order confirmation.
6. We have ISO and SGS certificates
Galvanized steel wire rope Mainly used for decoration, chemical metallurgy, petroleum machinery, port machinery, nuclear industry, the coal, metallurgy, chemicals, shipbuilding, bridges, electricity, rubber, military, tourism, water, light industry, aviation and aerospace industry.
Applications:
1.Galvanized wire used as tie wire, in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.
2.used in the manufacture of semi-finished form of ropes, springs, ropes, nets, electrodes and wiring.
3.Heat-treated galvanized wire is commonly used in the production of nails with diameters ranging from 1 to 6 mm.
4.used in the manufacture of woven mesh netting and suspension of various cables.
5.Galvanized wire can be used in devices grounding, boxes, mounting boxes, as well as the production of metallic brushes, paper clips, staples, rings and pendants for clothes hangers.
6.The wire can be used for the reinforcement of power transmission cables. Galvanized wire is used in electrical work, grounding, but it can also be used as an ordinary steel wire rod, in case you want to extend the life of Objects .
Specifications:
|
Diameter |
Min.Breaking Load (KN) |
Approx.Weight (Kg/1000m) |
|
1.5 |
180 |
9.93 |
|
1.59 |
200 |
11.16 |
|
1.89 |
256 |
14.8 |
|
2 |
300 |
18.3 |
|
2.38 |
430 |
25.9 |
|
2.5 |
475 |
27.5 |
|
3 |
700 |
38.6 |
|
3.18 |
907 |
43.2 |
|
3.5 |
1099 |
52.9 |
|
4 |
1270 |
68.2 |
|
4.78 |
1910 |
96.7 |
|
5 |
2107 |
106 |
|
5.55 |
2700 |
128 |
|
6 |
2958 |
152 |
|
6.35 |
3180 |
164 |
|
8 |
4415 |
257 |
|
9 |
5632 |
330 |
|
9.35 |
6630 |
362 |
Competitive Advantage:
1,It features ultra-high corrosion resistance,
2,surface quality, high brightness, strong corrosion resistance,
3,tensile strength and fatigue strength.
4,In particular, and high corrosion resistance,
5,Galvanjzed stainless steel wire rope widest range of uses,
6,mainly for the food industry and surgical equipment.
