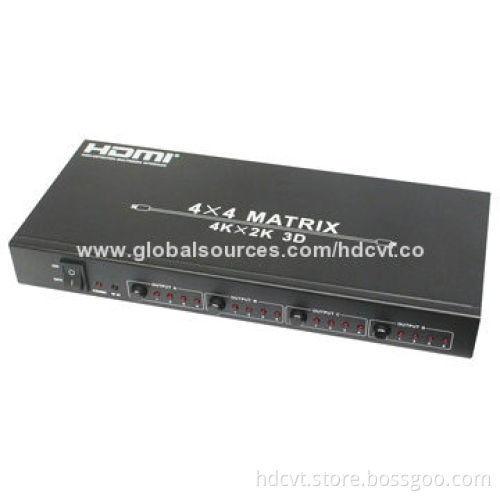

HDMI 1.4 4x4 + EDID + IR Matrix with 12V DC, 2.5A Power Supply, 3Gbps Bandwidth

HDMI 1.4 4x4 + EDID + IR Matrix with 12V DC, 2.5A Power Supply, 3Gbps Bandwidth

Get Latest Price

Payment Type:: T/T, L/C at Sight or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight or PayPal

Product Description

Introduction:

This is a high-performance HDMI Matrix with four HDMI input and four output
It allows any source (Blu-ray player, HD DVD player, satellite receiver, game system and more) to be shown on the any of the four displays simultaneously, and supports 4 x 2K, 3D
Deep color
With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution

Features:

Supports display resolution up to 4 x 2K at 30Hz, 1,080P at 120Hz and 1,080P 3D at 60Hz
3D HDMI 1.4a video format support
3D video support including frame packing for all 3D formats up to a 297MHz TMDS clock
Supports deep color up to 48-bit per pixel
HDCP 1.4 supports (input), HDCP V1.4a protocol compliant (output)
Supports reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS and HBR
Full colorimetric including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color
Operating for TMDS clock frequency up to 300MHz
Supports IR matrix

Package:

HDMI matrix: 1 piece
Adapter: 1 piece
Operating user's manual: 1 piece
Remote controller: 1 piece
IR receiver extender cable: 1 piece
RS232 serial cable: 1 piece
IR injectors (optional): 4 pieces
Wideband IR Tx (optional): 4 pieces
Wideband IR Rx (optional): 4 pieces

Specifications:

Frequency bandwidth: 2.97Gbps
Input ports: 4 x HDMI female input ports
Output ports: 4 x HDMI female output ports
Power supply: 12V DC, 2.5A
ESD protection human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
Dimensions (W x D x H): 115 x 270 x 45mm
Weight: 900g
Operating temperatures: 0 - 40°C/32-104°F
Storage temperatures: -20 - 60°C
