Introduction

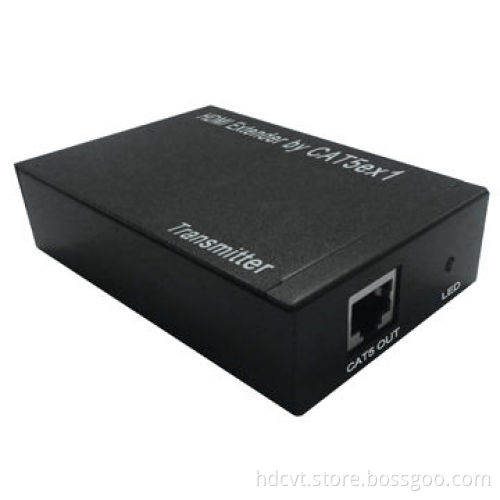

The HDMI Extender over ONE CAT 6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI extender and receiver, over ONE CAT6 extender is your substantial HDMI extender tool. The HDMI extender over ONE CAT 6 also support IR
re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender

Features

DC 5V~12V wide power supply
HDMI 1.3, HDCP 1.1 and DVI1.1 compliant
HDMI definition 1080p/1080i/720p/576p/576i/480p/480i@24/50/60fs
Support ceep color up to 12 bits/color
Support IR re-transmitting
Uses one CAT-6 cable for data/DDC transmission
Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away
When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters

Specifications:

Frequency bandwidth 2.25Gbps (single link)
Hdmi transmitter Input/output ports 1x HDMI female port/1 x CAT6
Hdmi receiver input/output ports 1 x HDMI female port/1 x CAT6
Power supply DC 5V~12V
ESD protection human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 65(W) X 100 (D) X 25 (H)
Chassis material: Aluminum
Operating temperatures; 0˚C ~ 40˚C/32˚F ~ 104˚F
Storage temperatures: -20˚C ~ 60˚C/-4˚F ~ 140˚F
Relative humidity 20~90% RH (non-condensing)
