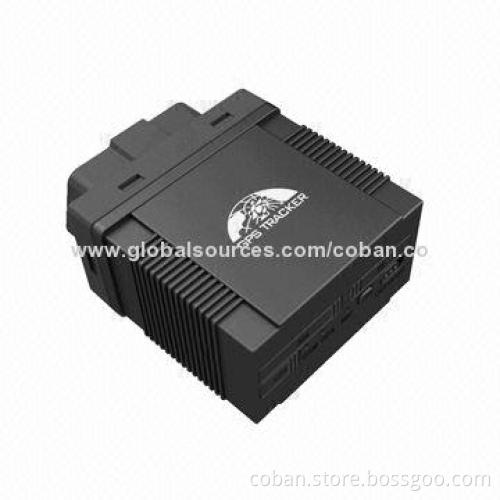

OBDII TK306 GPS Tracker/Vehicle Tracking with Monitor Software Sized 64.5x50x27mm

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

How does the GPS tracker work:

It is our newly designed plug-and -play OBD tracker, it could read OBD
Parameters from car ECU and GPS tracking for car location, all data will be transmit to the backend server for remote diagnostic and tracking purpose

Content specifications:

Dimensions: 64.5×50×27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1,800/1,900MHz
GPS sensitivity: -165dBm
GPS accuracy: 5m
Backup battery: chargeable 3.7V/200mAh Li-battery
Storage temperature: -40 to +85°C
Operating temperature: -20 to +70°C

Applying directions: 12-24V cars, vehicles, fleet management

The product supports existing OBD protocols:

SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO 14230-4 (KWP2000 5BPS)
ISO 14230-4 (KWP2000 FAST)
ISO 15765-4 (CAN500 11BIT)
ISO 15765-4 (CAN500 29BIT)
ISO 15765-4 (CAN250 11BIT)
ISO 15765-4 (CAN250 29BIT)

Features:

Vehicle OBD II tracker (9-40V)
Location based service (LBS) + GPS double real-time tracking solution
Monitor
SOS panic button
Geo-fence, movement, over-speed alarm, low-battery, ext, power-off alarm
Alarms under ARM: shock/ACC alarms
Request for OBD data by SMS:
- Fuel measurement
- Fuel consumption
- Mileage
- Speed
- Engine status
Diagnostic trouble codes and more
Trouble and maintenance notification
Multi power-saving mode:
- Sleep by time / shock sensor
- Deep sleep
- Awake at specific time
Save GPRS traffic mode
Built-in memory for 16,000 positions
Built-in 200mA polymer battery
SMS tracking on cellphone with Google Map link
Absolute street address by SMS
Web server, free PC tracking soft, Mobile phone APP

Warranty

All products have been strictly quality checked in house before packing
All products have been well packed before shipping
One year warranty is provided for all models, we will bear maintenance cost
During warranty

Delivery:

Sample and small order will be delivered within 2-3 working days after the receipt of payment
For order over 500 pieces or customized order, lead-time will be 5-7 days after the receipt of payment, please contact our sales to make sure the current inventory

It is our newly designed plug-and -play OBD tracker, it could read OBD

Parameters from car ECU and GPS tracking for car location, all data will be transmit to the backend server for remote diagnostic and tracking purpose

Dimensions: 64.5×50×27mm

Weight: 60g

Network: GSM/GPRS

Band: 850/900/1,800/1,900MHz

GPS sensitivity: -165dBm

GPS accuracy: 5m

Backup battery: chargeable 3.7V/200mAh Li-battery

Storage temperature: -40 to +85°C

Operating temperature: -20 to +70°C

SAE J1850 PWM

SAE J1850 VPW

ISO 9141-2

ISO 14230-4 (KWP2000 5BPS)

ISO 14230-4 (KWP2000 FAST)

ISO 15765-4 (CAN500 11BIT)

ISO 15765-4 (CAN500 29BIT)

ISO 15765-4 (CAN250 11BIT)

ISO 15765-4 (CAN250 29BIT)

Vehicle OBD II tracker (9-40V)

Location based service (LBS) + GPS double real-time tracking solution

Monitor

SOS panic button

Geo-fence, movement, over-speed alarm, low-battery, ext, power-off alarm

Alarms under ARM: shock/ACC alarms

Request for OBD data by SMS:

Fuel measurement
Fuel consumption
Mileage
Speed
Engine status

Diagnostic trouble codes and more

Trouble and maintenance notification

Multi power-saving mode:

Sleep by time / shock sensor
Deep sleep
Awake at specific time

Save GPRS traffic mode

Built-in memory for 16,000 positions

Built-in 200mA polymer battery

SMS tracking on cellphone with Google Map link

Absolute street address by SMS

Web server, free PC tracking soft, Mobile phone APP

Fuel measurement

Fuel consumption

Mileage

Speed

Engine status

Sleep by time / shock sensor

Deep sleep

Awake at specific time

All products have been strictly quality checked in house before packing

All products have been well packed before shipping

One year warranty is provided for all models, we will bear maintenance cost

During warranty

Sample and small order will be delivered within 2-3 working days after the receipt of payment

For order over 500 pieces or customized order, lead-time will be 5-7 days after the receipt of payment, please contact our sales to make sure the current inventory
