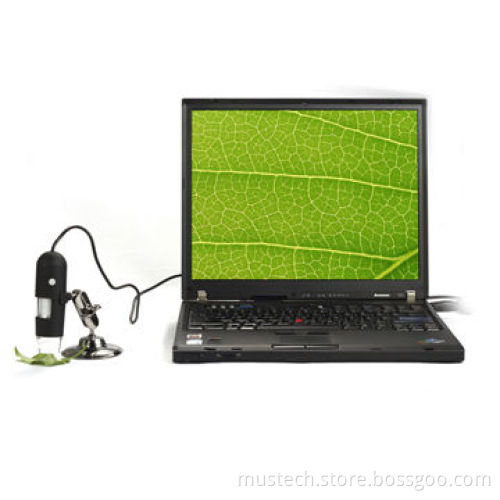

Mini/portable 200x USB digital microscope with measurement software

Mini/portable 200x USB digital microscope with measurement software

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Overview：

Is a high-tech while easy to use digital microscope
With this unit you may see a unique & “bigger” world
It is applicable in many fields such as visual inspection on electronic components and materials in a full range of uses, beauty shop and education
Its 2M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection environment
Measurement software can help you to measure tiny objects easily and precisely (as small as 0.001mm)
All those excellent features make it a good aid for your daily inspection on tiny objects

Major features:

2M, up to 5M by interpretation
Magnifications: 10x - 200x
With measurement function
Compatible with Windows and Mac
OEM supported
1-year manufacturer warranty

Specification：

Image sensor: 2-megapixels (interpolated to 5M)
Focus range: Manual focus from 10 to 500mm
Frame rate: Max. 30f/s under 600 Lus brightness
Magnification ratio: 10x to 200x
Light source: 8 LED (adjustable by control wheel)
Still capture resolutions: 2,560 x 2,048 (5M), 2,000 x 1,600, 1600x1280 (2M), 1,280 x 1,024, 1,024 x 960, 1,024 x 768, 800 x 600, 640 x 480, 352 x 288, 320 x 240
Video capture resolutions: 2,560 x 2,048 (5M), 2,000 x 1,600, 1,600 x 1,280 (2M), 1,280 x 1,024, 1,024 x 960, 1024 x 768, 800 x 600, 640 x 480, 352 x 288, 320 x 240
Frame rate: Max 30f/s under 600 Lus Brightness
Video format: AVI
Photo formats: JPEG or BMP
PC interface: USB2.0
Power source: 5V DC from USB port
Operation systems: Windows2000/XP/Vista/Win7/Win8, Mac OS X 10.6 or above
OSD languages: English, German, Spanish, Korean, French, Russian
Bundle software: Micro capture with measurement & calibration function
Working temperatures: -20-60°C
Size: 110 (L) x 33mm (R)

Is a high-tech while easy to use digital microscope

With this unit you may see a unique & “bigger” world

It is applicable in many fields such as visual inspection on electronic components and materials in a full range of uses, beauty shop and education

Its 2M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection environment

Measurement software can help you to measure tiny objects easily and precisely (as small as 0.001mm)

All those excellent features make it a good aid for your daily inspection on tiny objects

2M, up to 5M by interpretation

Magnifications: 10x - 200x

With measurement function

Compatible with Windows and Mac

OEM supported

1-year manufacturer warranty

Image sensor: 2-megapixels (interpolated to 5M)

Focus range: Manual focus from 10 to 500mm

Frame rate: Max. 30f/s under 600 Lus brightness

Magnification ratio: 10x to 200x

Light source: 8 LED (adjustable by control wheel)

Still capture resolutions: 2,560 x 2,048 (5M), 2,000 x 1,600, 1600x1280 (2M), 1,280 x 1,024, 1,024 x 960, 1,024 x 768, 800 x 600, 640 x 480, 352 x 288, 320 x 240

Video capture resolutions: 2,560 x 2,048 (5M), 2,000 x 1,600, 1,600 x 1,280 (2M), 1,280 x 1,024, 1,024 x 960, 1024 x 768, 800 x 600, 640 x 480, 352 x 288, 320 x 240

Frame rate: Max 30f/s under 600 Lus Brightness

Video format: AVI

Photo formats: JPEG or BMP

PC interface: USB2.0

Power source: 5V DC from USB port

Operation systems: Windows2000/XP/Vista/Win7/Win8, Mac OS X 10.6 or above

OSD languages: English, German, Spanish, Korean, French, Russian

Bundle software: Micro capture with measurement & calibration function

Working temperatures: -20-60°C

Size: 110 (L) x 33mm (R)
