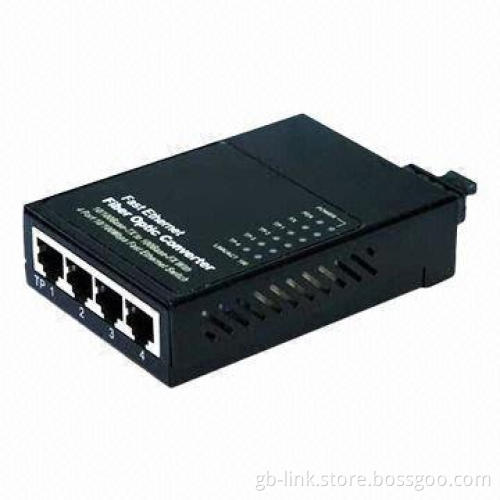

Fiber Media Converter, 2 UTP Ports, 4 10/100Mbps, RJ-45 Port + 1 Fiber Port

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

It is 10/100Mbps fast Ethernet converter

The converter mediates between a 10/100Base-TX signal and a 100Base-FX signal

It is primarily designed for large, higher speed/bandwidth demanding working groups that requirement expansion of the Ethernet network

Compliant with 802.3u 10/100Base-TX and 100Base-FX standard

Provides one SC fiber connector and two connectors

Auto-detection of half/full duplex transfer mode for TX port

Auto-negotiation of 10/100Mbps rate and auto-MDIX for TX port

Provides switch configuration of half/full duplex transfer mode for FX port

Extend fiber distance up to 2km for multi-mode fiber and 20-100km for single-mode fiber

Easy-to-view LED indicators provides status to easily monitor network activity

Internal or external power supply

Standards: IEEE802.3, IEEE802.3u, IEEE802.3x

Fiber media data rate: 10/100Mbps

Operating wavelength: 1,310 ±25nm, 1,550 ±25nm for single-mode

850 ±25nm, 1,310 ±25nm for multi-mode

Transmit distance single-mode: 20, 40, 60, 80, 100km

Multi-mode: 2km

Fiber interface: SC

Fiber type:

10/100Mbps fiber media RJ-45 port: UTP-100Ω Cat5 cable up to 120m

Power supply: 5V, 1.5A (external)

Power consumption: 7.5W

Operating temperature: 0 to 60°C

Storage temperature: 10 to 70°C

Humidity range: 5 to 95% RH (non-condensing)

Dimensions: 120 x 88 x 16mm (external power supply)

Single-mode: 9/125um

Multi-mode: 62.5/125um
