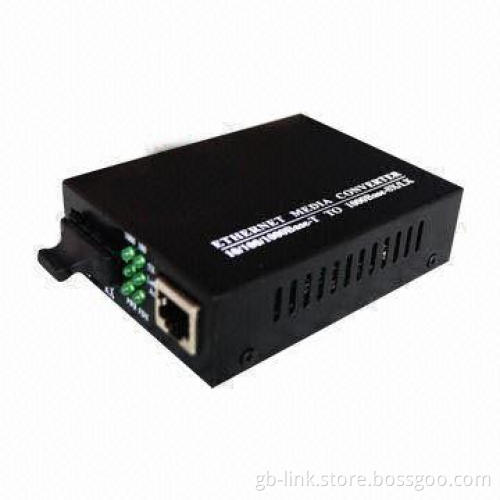

10/100/1,000Mbps Gigabyte Optical Fiber Media Converter with 5 to 90% RH Humidity Range

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Description:

Can convert optical, electric Ethernet signals between 10/100/1,000Mbps UTP interface (TX) and 1,000Mbps optical fiber interface (FX)
Traditional 10/100/1,000Mbps gigabit Ethernet can be extended to distance of 100km through optical fiber link
Performance and quality of products are excellent because of adopting latest gigabit IC from USA and Taiwan
6-group LED indicated lights could fully monitor working conditions of converters
Easy for users to observe and diagnose failure of converters
Series gigabit converters could be used alone, but converter card should be inserted to 16 slots rack supplied by crop, which is suitable for use of network center

Features:

Auto negotiation function allows UTP ports to auto select 10/100/1,000Mbps and full duplex or half duplex
UTP port supports connection of MDI/MDI-X auto crossover
Supports maximum 1,536 bytes Ethernet packet
Supports flow control
Adopts internal power supply

Specifications:

Operating standards: IEEE 802.3z/AB, 1000Base-T and 1000Base-SX/LX
Apple's Mac address table: 4K
Data buffer: 256K
Connectors: UTP RJ-45, 10/100/1000Mbps, fiber SC, 1000Mbps
UTP cable: Cat5e or Cat 6 (maximum distance up to 100m)
Fiber: multiple modes 50/125, 62.5/125μm (maximum distance up to 550/224m), single-mode 8.3/125, 8.7/125, 9/125μm (maximum distance up to 100km)
Flow control
Full duplex: IEEE 802.3x
Half duplex: back pressure
Optical media converter power: 220V AC (170 to 260V) 50Hz, 5V DC, 2A
Ambient temperature: 0 to 50°C
Storage temperature: -20 to 70°C
Humidity range: 5 to 90% RH
Dimensions: internal power 30 x 110 x 140mm and external power 26 x 70 x 94mm

Can convert optical, electric Ethernet signals between 10/100/1,000Mbps UTP interface (TX) and 1,000Mbps optical fiber interface (FX)

Traditional 10/100/1,000Mbps gigabit Ethernet can be extended to distance of 100km through optical fiber link

Performance and quality of products are excellent because of adopting latest gigabit IC from USA and Taiwan

6-group LED indicated lights could fully monitor working conditions of converters

Easy for users to observe and diagnose failure of converters

Series gigabit converters could be used alone, but converter card should be inserted to 16 slots rack supplied by crop, which is suitable for use of network center

Auto negotiation function allows UTP ports to auto select 10/100/1,000Mbps and full duplex or half duplex

UTP port supports connection of MDI/MDI-X auto crossover

Supports maximum 1,536 bytes Ethernet packet

Supports flow control

Adopts internal power supply

Operating standards: IEEE 802.3z/AB, 1000Base-T and 1000Base-SX/LX

Apple's Mac address table: 4K

Data buffer: 256K

Connectors: UTP RJ-45, 10/100/1000Mbps, fiber SC, 1000Mbps

UTP cable: Cat5e or Cat 6 (maximum distance up to 100m)

Fiber: multiple modes 50/125, 62.5/125μm (maximum distance up to 550/224m), single-mode 8.3/125, 8.7/125, 9/125μm (maximum distance up to 100km)

Flow control
