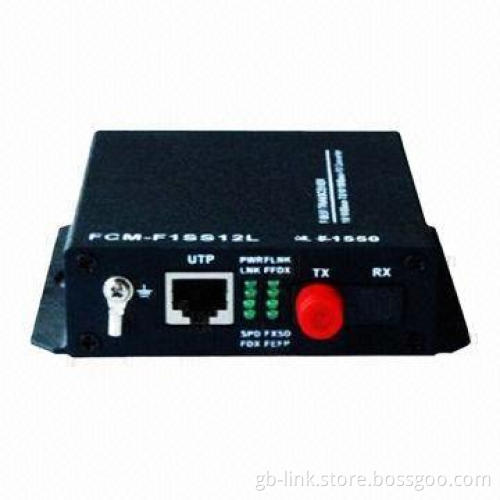

Fiber-optic 10/100M Media Converter, Measures 90 x 27 x 138mm, 120km Long Distance

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Features:

Fiber media converter is transmission signals between 10/100M copper lines and 100M fiber links, effectively extending Ethernet transmission distance from 100m to 120km
Primarily used in broadband WAN established by data network operators as telecast, Netcom, unicom or industrial broadband industrial private networks of government, finance, oil, police, force, railway, power, transportation and education
Supports 10Base-T, 100Base-TX and 100Base-FX
Cost effective copper to fiber media conversion of fast Ethernet service
User configurable FE port 10/100Mbps auto-negotiation and auto-MDI/MDIX
MTU up to 1600 bytes
User configurable fiber-to-copper fault pass through
Available for multiple mode and single-mode, single-strand and dual-strand, short-distance and long-distance up to 120km
Supports fiber alter function, if receiving fiber signal is lost then it will cut off transmitting fiber line automatically
Available with modular and standalone versions, modular version is power supplied in FCK14 chassis
Locally managed via SNMP on FC view system

Specifications:

Fixed interface: 1 x fiber interface and 1 x copper interface
Media speed: 100M fixed fiber interface, 10/100M auto-negotiation copper interface
Power consumption: Dimensions: (W) 90 x (H) 27 x (D) 138mm
Working temperatures: 0 to 55°C
Working humidity: ≤90% RH (25°C)

Fiber media converter is transmission signals between 10/100M copper lines and 100M fiber links, effectively extending Ethernet transmission distance from 100m to 120km

Primarily used in broadband WAN established by data network operators as telecast, Netcom, unicom or industrial broadband industrial private networks of government, finance, oil, police, force, railway, power, transportation and education

Supports 10Base-T, 100Base-TX and 100Base-FX

Cost effective copper to fiber media conversion of fast Ethernet service

User configurable FE port 10/100Mbps auto-negotiation and auto-MDI/MDIX

MTU up to 1600 bytes

User configurable fiber-to-copper fault pass through

Available for multiple mode and single-mode, single-strand and dual-strand, short-distance and long-distance up to 120km

Supports fiber alter function, if receiving fiber signal is lost then it will cut off transmitting fiber line automatically

Available with modular and standalone versions, modular version is power supplied in FCK14 chassis

Locally managed via SNMP on FC view system

Fixed interface: 1 x fiber interface and 1 x copper interface

Media speed: 100M fixed fiber interface, 10/100M auto-negotiation copper interface

Power consumption: Dimensions: (W) 90 x (H) 27 x (D) 138mm
