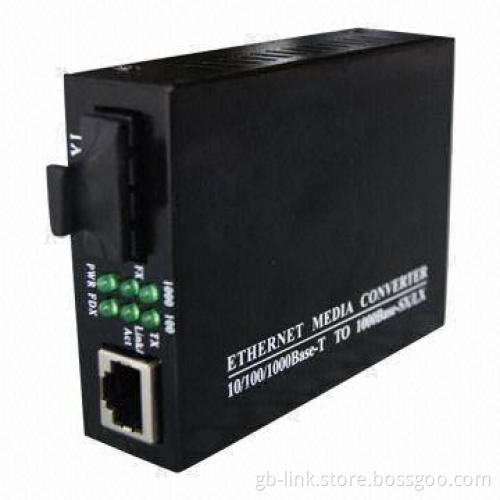

10/100/1,000M Media/Gigabyte Optical Fiber Converter, 26 x 70 x 94mm External Power

10/100/1,000M Media/Gigabyte Optical Fiber Converter, 26 x 70 x 94mm External Power

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Descriptions:

Can convert optical, electric Ethernet signals between 10/100/1,000M UTP interface (TX) and 1,000M optical fiber interface (FX)
Traditional 10/100/1,000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link
The performance and quality of the products are excellent because of adopting latest gigabit IC from USA and Taiwan
6 groups LED indicated lights could fully monitor the working conditions of converters
Easy for users to observe and diagnose the failure of converters
Series gigabit converters could be used alone, but converter card should be inserted to 16 slots rack supplied by crop, which is suitable for the use of network center

Main features:

Auto-negotiation function allows UTP ports to auto select 10/100/1,000M and full duplex or half duplex
UTP port supports the connection of MDI/MDI-X auto crossover
Supporting the maximum 1,536 byte Ethernet packet
Supporting flow control
Adopting internal power supply

Technical specifications:

Operating standards: IEEE802.3z/AB, 1,000Base-T and 1,000Base-SX/LX
Apple's Mac address table: 4K
Data buffer: 256K
Connectors: UTP RJ45, 10/100/1,000Mbps, fiber SC, 1,000Mbps
UTP cable: Cat5e or Cat 6 (the maximum distance up to 100m)
Fiber: multiple modes 50/125, 62.5/125μm (the maximum distance up to 550/224m), single mode 8.3/125, 8.7/125, 9/125μm (the maximum distance up to 100km)
Flow control
Full duplex: IEEE802.3x
Half duplex: backpressure

Can convert optical, electric Ethernet signals between 10/100/1,000M UTP interface (TX) and 1,000M optical fiber interface (FX)

Traditional 10/100/1,000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link

The performance and quality of the products are excellent because of adopting latest gigabit IC from USA and Taiwan

6 groups LED indicated lights could fully monitor the working conditions of converters

Easy for users to observe and diagnose the failure of converters

Series gigabit converters could be used alone, but converter card should be inserted to 16 slots rack supplied by crop, which is suitable for the use of network center

Auto-negotiation function allows UTP ports to auto select 10/100/1,000M and full duplex or half duplex

UTP port supports the connection of MDI/MDI-X auto crossover

Supporting the maximum 1,536 byte Ethernet packet

Supporting flow control

Adopting internal power supply

Operating standards: IEEE802.3z/AB, 1,000Base-T and 1,000Base-SX/LX

Apple's Mac address table: 4K

Data buffer: 256K

Connectors: UTP RJ45, 10/100/1,000Mbps, fiber SC, 1,000Mbps

UTP cable: Cat5e or Cat 6 (the maximum distance up to 100m)

Fiber: multiple modes 50/125, 62.5/125μm (the maximum distance up to 550/224m), single mode 8.3/125, 8.7/125, 9/125μm (the maximum distance up to 100km)

Flow control

Full duplex: IEEE802.3x

Half duplex: backpressure
