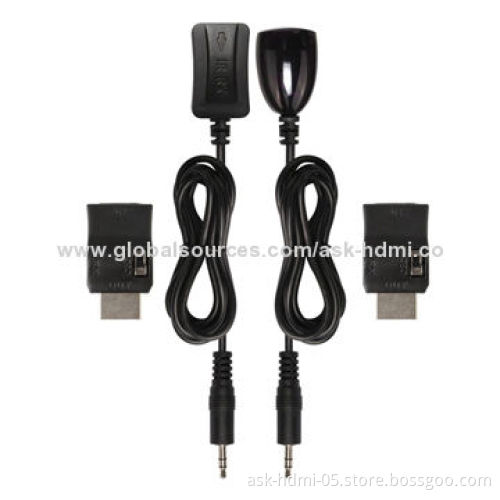

IR extender over HDMI

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

The IR extender can do IR signal extend by the CEC channel of the HDMI port

You can control to the IR signal source device by using the received IR (infrared) signal by the IR receiver

Features & specifications:

It can control to the IR signal source device by using the received IR (infrared) signal by the IR receiver
IR extend distance is up to 25m (it depends on the quality and length of the HDMI cable)
Control: To choose the CEC/IR extends function by manual, it needs to put the two IR adaptor switch to IR status
Carrier frequency： dual band (20KHz-68KHz)
The receiving distance: 8M
MAX operation current: 15mA
Weight:80g housing: plastic box
Easy install & operation
Power free

Operating and connecting：

To use one HDMI cable to connect the two IR adaptor HDMI input female port
To connect one of the two IR adaptor output port with the HD source, the other IR adaptor output port to connect with the display
To connect one IR adaptor with the IR-RX port
To connect the other IR adaptor with the IR-TX port

It can control to the IR signal source device by using the received IR (infrared) signal by the IR receiver

IR extend distance is up to 25m (it depends on the quality and length of the HDMI cable)

Control: To choose the CEC/IR extends function by manual, it needs to put the two IR adaptor switch to IR status

Carrier frequency： dual band (20KHz-68KHz)

The receiving distance: 8M

MAX operation current: 15mA

Weight:80g housing: plastic box

Easy install & operation

Power free

To use one HDMI cable to connect the two IR adaptor HDMI input female port

To connect one of the two IR adaptor output port with the HD source, the other IR adaptor output port to connect with the display

To connect one IR adaptor with the IR-RX port
