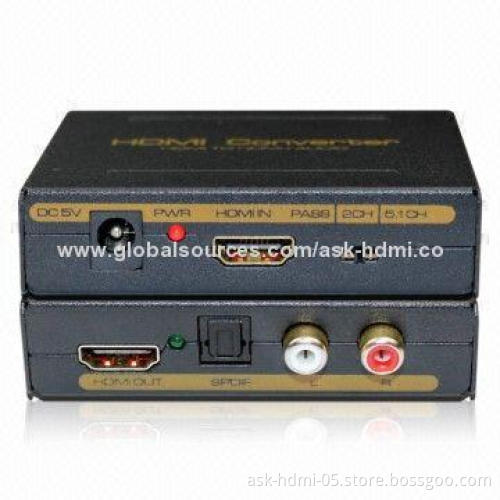

HDMI Audio Extractor RL Analog and Toslink
  • HDMI Audio Extractor RL Analog and Toslink
  • HDMI Audio Extractor RL Analog and Toslink
  • HDMI Audio Extractor RL Analog and Toslink
  • HDMI Audio Extractor RL Analog and Toslink
HDMI Audio Extractor RL Analog and Toslink
HDMI Audio Extractor RL Analog and Toslink
HDMI Audio Extractor RL Analog and Toslink
HDMI Audio Extractor RL Analog and Toslink

HDMI Audio Extractor RL Analog and Toslink

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • One HDMI input converted to one HDMI, audio (SPDIF, R/L) output
    • Output audio support: SPDIF, R/L analog audio output
    • Input resolution: up to 1080P (50/60Hz)
    • HDMI to achieve the synchronization of audio signal separation, there are PASS /2.0CH/5.1CH three kinds of audio mode options
    • LED indication: when source or sink is working, LED relative to is light
    • No loss of quality
    • Installs in minutes: need DC 5V/1A power supply
  • Specifications:
    • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
    • Support video color format: 24bit/deep color 30bit, 36bit
    • Audio output: L/R+SPDIF
    • Max bandwidth: 225MHz
    • Max baud rate: 6.75Gbps
    • Input/output TMDS signal: 0.5~1.5Volts p-p(TTL)
    • Input/output DDC signal: 5 volts p-p (TTL)
    • Input cable distance: 15m AWG26 HDMI standard cable
    • Output cable distance: ≤20m AWG26 HDMI standard cable
    • Max working current: 500mA
    • Power adapter format: input: AC (50/60Hz) 100-240V, output: DC 5V/1A
    • Operating temperature range: -15 to 55℃
    • Operating humidity range: 5 to 90% RH (no condensation)
    • Dimensions (L x W x H): 84.5 X 61.8 X 21mm
    • Weight: 135g
  • Accessories:
    • 5V power adapter
    • One user manual
  • One HDMI input converted to one HDMI, audio (SPDIF, R/L) output
  • Output audio support: SPDIF, R/L analog audio output
  • Input resolution: up to 1080P (50/60Hz)
  • HDMI to achieve the synchronization of audio signal separation, there are PASS /2.0CH/5.1CH three kinds of audio mode options
  • LED indication: when source or sink is working, LED relative to is light
  • No loss of quality
  • Installs in minutes: need DC 5V/1A power supply
  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support video color format: 24bit/deep color 30bit, 36bit
  • Audio output: L/R+SPDIF
  • Max bandwidth: 225MHz
  • Max baud rate: 6.75Gbps
  • Input/output TMDS signal: 0.5~1.5Volts p-p(TTL)
  • Input/output DDC signal: 5 volts p-p (TTL)
  • Input cable distance: 15m AWG26 HDMI standard cable
  • Output cable distance: ≤20m AWG26 HDMI standard cable
  • Max working current: 500mA
  • Power adapter format: input: AC (50/60Hz) 100-240V, output: DC 5V/1A
  • Operating temperature range: -15 to 55℃
  • Operating humidity range: 5 to 90% RH (no condensation)
  • Dimensions (L x W x H): 84.5 X 61.8 X 21mm
  • Weight: 135g
  • 5V power adapter
  • One user manual
