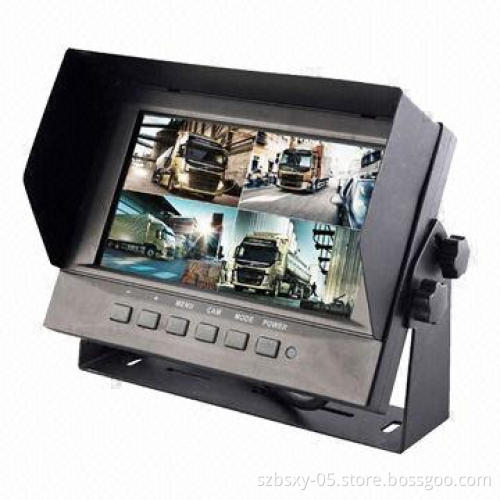

7-inch Waterproof Digital Monitor with Quad Function for Fire Trucks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

Dimensions: 7-inch digital color LCD Quad monitor
TV system: NTSC/PAL
Resolution: 800 x 3 x (RGB) x 480 pixels
Brightness: 400cd/m²
Contrast: 500:1
Lattice distance (H x V): 0.192 x 0.1805mm
Aspect ratio: 16:9
Viewing angles:
- U: 50°
- D: 60°
- R/L: 70°
Rating: 20,000 hours
Waterproof rate: IP69K
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German and Italian

Features:

With remote control or panel
Supports 4 cameras video simultaneous input
Single, dual, triple, Quad image for option
Normal or mirrored picture can be switched separately on eachcamera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
The trigger delay time can be adjusted (1-5 seconds) on eachcamera
In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage
Working voltage: 12-32V
Self-protect of the DC voltage at the short-circuit
Operating temperatures: -10 to 65°C
Storage temperatures: -30 to 80°C
Operating humidity range: 20 to 80% RH
