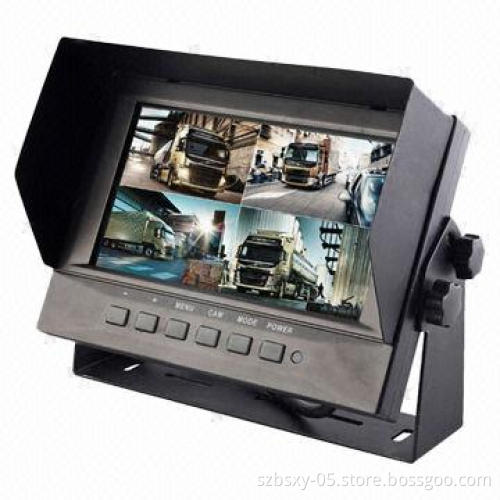

7-inch Quad Digital LCD Monitor for Fire Truck/Heavy-duty Equipment, with 20,000 Hours Rating
  • 7-inch Quad Digital LCD Monitor for Fire Truck/Heavy-duty Equipment, with 20,000 Hours Rating
7-inch Quad Digital LCD Monitor for Fire Truck/Heavy-duty Equipment, with 20,000 Hours Rating

7-inch Quad Digital LCD Monitor for Fire Truck/Heavy-duty Equipment, with 20,000 Hours Rating

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • LCD-TFT performance
    • Dimensions: 7-inch digital color LCD Quad monitor
    • TV systems: NTSC/PAL
    • Resolution: 800 x 3 x (RGB) x 480 pixels
    • Brightness: 400cd/m²
    • Contrast: 500:1
    • Lattice distance (H x V): 0.192 x 0.1805
    • Aspect ratio: 16:9
    • Viewing angle: U: 50°/D: 60°, R/L: 70°
    • Rating: 20,000 hours
    • Waterproof rate: IP69K
    • Shell material: aluminum alloy
    • Bracket material: iron
    • Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
    • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German and Italic
    • With remote control
    • Panel or remote control
    • Supports 4 cameras video simultaneous input
    • Single, dual, triple, quad image for optional
    • Normal or mirrored picture can be switched separately on eachcamera
    • Separate trigger control wire on each camera
    • Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
    • The trigger delay time can be adjusted (1-5 seconds) on eachcamera
    • In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage
    • Working voltage: 12-32V
    • Self-protect of the DC voltage at the short-circuit
    • Operating temperature: -10 to 65
    • Storage temperature: -30 to 80
    • Operating humidity range: 20 to 80% RH
  • LCD-TFT performance
  • Dimensions: 7-inch digital color LCD Quad monitor
  • TV systems: NTSC/PAL
  • Resolution: 800 x 3 x (RGB) x 480 pixels
  • Brightness: 400cd/m²
  • Contrast: 500:1
  • Lattice distance (H x V): 0.192 x 0.1805
  • Aspect ratio: 16:9
  • Viewing angle: U: 50°/D: 60°, R/L: 70°
  • Rating: 20,000 hours
  • Waterproof rate: IP69K
  • Shell material: aluminum alloy
  • Bracket material: iron
  • Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
  • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German and Italic
  • With remote control
  • Panel or remote control
  • Supports 4 cameras video simultaneous input
  • Single, dual, triple, quad image for optional
  • Normal or mirrored picture can be switched separately on eachcamera
  • Separate trigger control wire on each camera
  • Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
  • The trigger delay time can be adjusted (1-5 seconds) on eachcamera
  • In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage
  • Working voltage: 12-32V
  • Self-protect of the DC voltage at the short-circuit
  • Operating temperature: -10 to 65
  • Storage temperature: -30 to 80
  • Operating humidity range: 20 to 80% RH
