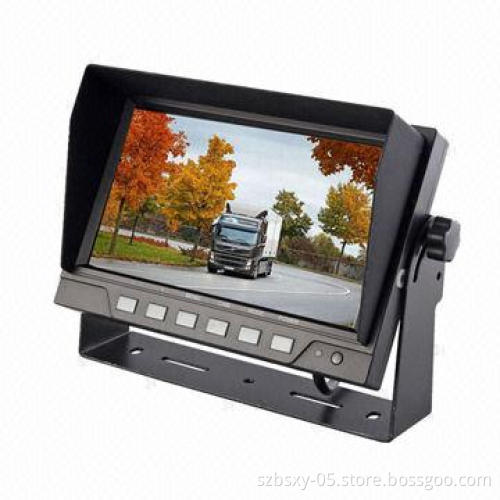

7-inch Digital Stand-alone Monitor for Buses Rearview System

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Dimensions: 7-inch digital color LCD monitor

TV system: NTSC/PAL auto

Resolution: 800 x 3 x (RGB) x 480

Brightness: 400cd/m²

Contrast: 500:1

Lattice distance (H x V): 0.192 x 0.1805

Aspect ratio: 16:9

Viewing angle:

Rating: 20,000 hours

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian and German

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Screen display mode can be switched the day mode and night modeby pressing button

Supports 2 cameras video simultaneous input

Supports 2 cameras audio simultaneous input

Normal or mirrored picture can be switched separately on eachcamera

Separate trigger control wire on each camera

Monitor will automatically switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

The trigger delay time can be adjusted (0-4 seconds) on eachcamera

In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage

Working voltage: 12 to 32V

Working current: 800mA (with in 2 cameras)

Self-protect of the DC voltage at the short-circuit

Operating temperature: -10 to +65°C

Storage temperature: -30 to +80°C

Bracket option: U-shape/S-shape

Outer dimensions (L x W x H): 82 x 40 x 124mm

Up: 50°

Down: 60°

Right/left: 70°
