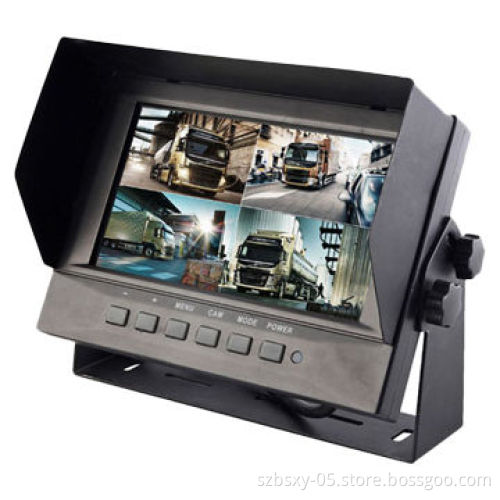

7-inch Quad Digital Car Monitor for Fire Truck

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

LCD-TFT performance

Dimension: 7-inch digital color LCD Quad monitor

TV systems: NTSC/PAL

Resolution: 800 x 3 x (RGB) x 480 pixels

Brightness: 400cd/m²

Contrast: 500:1

Lattice distance (H x V): 0.192 x 0.1805

Aspect ratio: 16:9

Viewing angle: U: 50°/D:60°, R/L:70°

Rating: 20,000 hours

Products featured function

Waterproof rate: IP69K

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosion prevention

Multiple menu languages: English, Dutch, French, Portuguese, Spanish, Russian, German and Italian

With panel or remote control

Supports 4 cameras video simultaneous input

Single, dual, triple, quad image for optional

Normal or mirrored picture can be switched separately on each camera

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops

The trigger delay time can be adjusted (1-5s) on each camera

In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image

Working voltages: 12-32V

Self-protect of the DC voltage at the short-circuit

Operating temperatures: -10 to 65℃

Storage temperatures: -30 to 80℃

Operating humidity range: 20 to 80% RH
