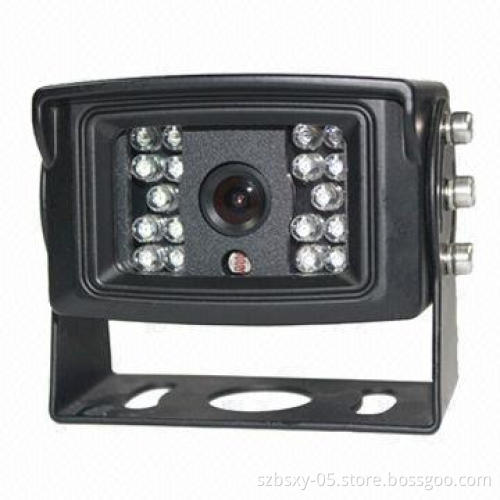

Car Rear-view Camera with IP69K Waterproof for Trucks, 12V DC Power Supply

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

Image device: 1/4-inch sharp CCD
Resolution: 420TVL
TV system: PAL/ NTSC
Effective pixels: 512 x 582/512 x 492
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Synchronization system: internal
Horizontal synchronization frequency: 15.625/15.734kHz
Vertical synchronization frequency: 50/60Hz
Minimum illumination: 0 Lux
Infrared lamps: on 0 .1 Lux (day)/F1.2
Output video: 1.0Vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: automatic
S/N ratio: better than 48dB
White balance: automatic
Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds
BLC: automatic
Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 18 pieces
IR distance: 15m
Waterproof rate: IP68
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydroelectric acid prevention,explosion prevention
Current consumption: 200mA (maximum)
Power supply: 12V DC
Operating temperature: -20 to 70°C, 95 RH (maximum)
Storage temperature: -40 to 80°C, 95 RH (maximum)

Functions:

Chip: CMOS
Chip: Sony 420/480/520/560TVL
Mic: collects the environment sound around the camera
Mirror and non-mirror images option (adjusted by screw)
Superficial colors are optional: black, white and silver
Dimensions (L x W x H): 75 x 55 x 62mm

Image device: 1/4-inch sharp CCD

Resolution: 420TVL

TV system: PAL/ NTSC

Effective pixels: 512 x 582/512 x 492

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Synchronization system: internal

Horizontal synchronization frequency: 15.625/15.734kHz

Vertical synchronization frequency: 50/60Hz

Minimum illumination: 0 Lux

Infrared lamps: on 0 .1 Lux (day)/F1.2

Output video: 1.0Vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: automatic

S/N ratio: better than 48dB

White balance: automatic

Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds

BLC: automatic

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 18 pieces

IR distance: 15m

Waterproof rate: IP68

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydroelectric acid prevention,explosion prevention

Current consumption: 200mA (maximum)

Power supply: 12V DC

Operating temperature: -20 to 70°C, 95 RH (maximum)

Storage temperature: -40 to 80°C, 95 RH (maximum)

Chip: CMOS

Chip: Sony 420/480/520/560TVL

Mic: collects the environment sound around the camera

Mirror and non-mirror images option (adjusted by screw)

Superficial colors are optional: black, white and silver

Dimensions (L x W x H): 75 x 55 x 62mm
