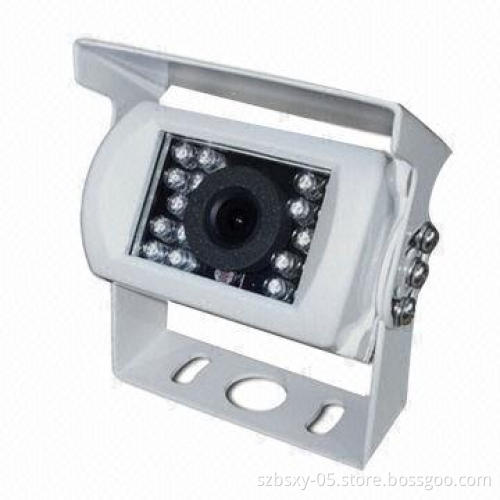

Night Vision Waterproof Rear-view Camera for Heavy-duty Equipment with 2.5mm Lens

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Chip performance:

Image device: 1/4-inch Sharp CCD
Resolution: 420TV lines
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Synchronization system: internal
Synchronization frequency:
- Horizontal: 15.625/15.734kHz
- Vertical: 50/60Hz
Minimum illumination: 0 Lux (infrared lamps on), 0.1 Lux(day)/F1.2
Video output: 1.0Vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: automatic
S/N ratio: better than 48dB
White balance: automatic
Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds
BLC: automatic

Idiomatical performance:

Lens: 2.5mm

Lens angle: 120°

Infrared LED lights: 18 pieces

IR distance: 15m

Waterproof rate: IP68

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: 200mA (maximum)

Power supply: 12V DC

Operating temperature: -20 to 70°C, 95% RH (maximum)

Storage temperature: -40 to 80°C, 95% RH (maximum)

Image device: 1/4-inch Sharp CCD

Resolution: 420TV lines

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Synchronization system: internal

Synchronization frequency:

Horizontal: 15.625/15.734kHz
Vertical: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps on), 0.1 Lux(day)/F1.2

Video output: 1.0Vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: automatic

S/N ratio: better than 48dB

White balance: automatic

Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds

BLC: automatic

Horizontal: 15.625/15.734kHz

Vertical: 50/60Hz

Optional featured functions:

Chip CMOS

Chip Sony 420/480/520/560TV lines

Mic: collects the environmental sound around the camera

Self-heating: the cameras will entry the self-heating mode whenthe environment working temperature is lower than 10°C

And it wills automatic stop heating when the temperaturereaches 30°C

Superficial colors are optional: black, white, silver

Dimensions (L x W x H): 72 x 52 x 42mm

Net weight: 350g
