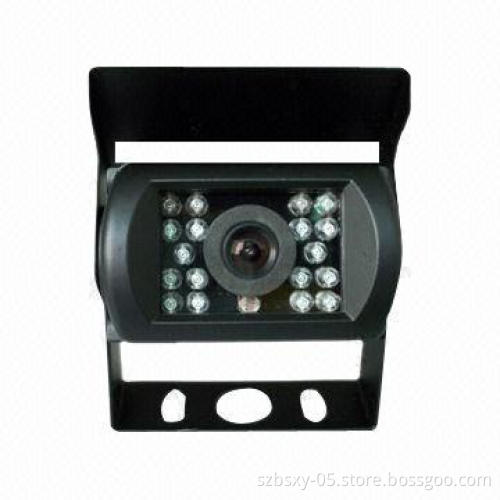

Car Backup Camera with IR Color Sharp CCD for Back View

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Lens angle: 120˚

Image sensor: 1/3 or 1/4-inch color Sharp or Sony CCD

Lens: f = 2.8/2.5mm

Water-resistant grade: IP67

Horizontal resolution: 420TVL

TV system: NTSC/PAL

Minimum illumination: 0 lux with IR on

View distance: 15m

Effective pixels:

4P aviation connectors defined as follows:

Photosensitive area: 3.6 x 2.7mm

Video output: 1.0Vp-p, 75©

Backlight compensation: automatic

Current consumption: maximum of 300mA

Power supply: 12V

Operating temperature: -20 to +75 (RH 95% maximum)

Net weight: 320g

The camera is used in long vehicle, truck, trailer, andbus

It is water resistant, high voltage, and surge resistant

Self heating option: the cameras will entry the self-heatingmode when the environmental working temperature is lower than-5°C

And it wills automatic stop heating when the temperaturereaches 30°C

NTSC: 510 x 492 pixels

PAL: 500 x 582 pixels

Power in

Ground

Vacant

Video in
