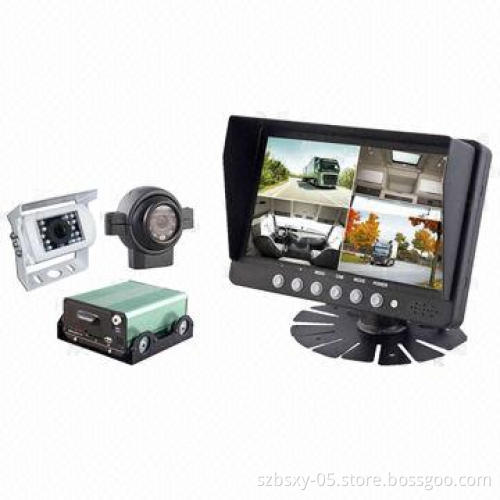

Car Mobile DVR/Recorder System with digital car monitor and heavy-duty camera for buses

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design

4 channel video and audio recording

Video formats: 1D1 (25fps) + 3CIF (25fps)

Alarm input: 4 alarm inputs, no alarm below 4V and high-levelalarm above 4V

Compression: H.264

Data storage: maximum supports 2TB SATA HDD and 64GB SDcard

Motion detection/timer switch/alarm recording

Dual shock-proof

Supports USB port

Operating temperature range: -30-80°C

Power: 6/32V DC

Language: Chinese/English/Russian

Image device: 1/4 sharp CCD

Resolution: 420TVL

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync system: internal

Horizontal sync frequency: 15.625/15.734kHz

Vertical sync frequency: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2

Video output: 1.0vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter: 1/60 (NTSC)/1/50 (PAL)-1/10,000seconds

BLC: auto

Product's idiomatical performance:

Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 18 pieces
IR distance: 15m
Waterproof rate: IP68

Dimensions: 7-inch color LCD monitor

TV system: NTSC/PAL auto

Resolution: 480 x 3 x (RGB) x 234P

Brightness: 300cd/m²

Contrast: 300:1

Aspect ratio: 16:9

Viewing angle:

U: 50°
D: 60°
R/L: 70°

Rating: 20,000 hours

Products featured function

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Support 2 cameras video simultaneous input

Support 1 camera audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 18 pieces

IR distance: 15m

Waterproof rate: IP68

U: 50°

D: 60°

R/L: 70°
