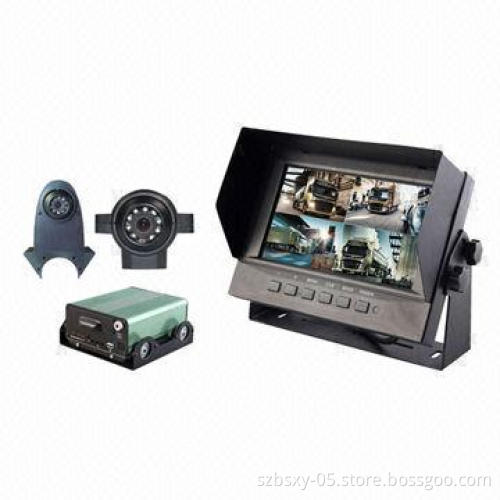

4CH Car Mobile HDD DVR Recorder System with Backup Night Vision Waterproof Camera for Trailer Truck

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design
4-channel video and audio recording
Video formats: 1D1 (25fps) + 3CIF (25fps)
Alarm input: 4 alarm inputs, no alarm below 4V and high-levelalarm above 4V
Compression: H.264
Data storage: maximum supports 2TB SATA HDD and 64GB SDcard
Motion detection/timer switch/alarm recording
Dual shock-proof
Supports USB port
Operation temperature range: -30-80°C
Power: 6/32V DC
Languages: Chinese, English and Russian
Dimensions: 7-inch digital color LCD monitor
TV system: NTSC/PAL auto
Resolution: 800 x 3 x (RGB) x 480 pixels
Brightness: 400cd/m²
Contrast: 500:1
Lattice distance (H x V): 0.192 x 0.1805
Aspect ratio: 16:9
Viewing angle:
- U: 50°
- D: 60°
- R/L: 70°
- Rating: 20,000 hours

Features:

Waterproof rate: IP69K
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
With remote control
Working voltage: 12-32V
Image device: 1/4-inch Sharp CCD
Resolution: 420TVL
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Sync system: internal
Horizontal sync frequency: 15.625/15.734kHz
Vertical sync Frequency: 50/60Hz
Minimum illumination: 0 Lux (infrared lamps-on) 0.1 Lux(day)/F1.2
Video output: 1.0vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: auto
S/N ratio: better than 48dB
White balance: auto
Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) - 1/10,000seconds
BLC: auto
Products idiomatical performance:
- Lens: 2.5mm
- Lens angle: 120°
- Infrared LED light: 9 pieces
- IR distance: 10m
- Waterproof rate: IP68

Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design

4-channel video and audio recording

Video formats: 1D1 (25fps) + 3CIF (25fps)

Alarm input: 4 alarm inputs, no alarm below 4V and high-levelalarm above 4V

Compression: H.264

Data storage: maximum supports 2TB SATA HDD and 64GB SDcard

Motion detection/timer switch/alarm recording

Dual shock-proof

Supports USB port

Operation temperature range: -30-80°C

Power: 6/32V DC

Languages: Chinese, English and Russian

Dimensions: 7-inch digital color LCD monitor

TV system: NTSC/PAL auto

Resolution: 800 x 3 x (RGB) x 480 pixels

Brightness: 400cd/m²

Contrast: 500:1

Lattice distance (H x V): 0.192 x 0.1805

Aspect ratio: 16:9

Viewing angle:

U: 50°
D: 60°
R/L: 70°
Rating: 20,000 hours

U: 50°

D: 60°

R/L: 70°

Rating: 20,000 hours

Waterproof rate: IP69K

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German

With remote control

Working voltage: 12-32V

Image device: 1/4-inch Sharp CCD

Resolution: 420TVL

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync system: internal

Horizontal sync frequency: 15.625/15.734kHz

Vertical sync Frequency: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps-on) 0.1 Lux(day)/F1.2

Video output: 1.0vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) - 1/10,000seconds

BLC: auto

Products idiomatical performance:

Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 9 pieces
IR distance: 10m
Waterproof rate: IP68

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 9 pieces

IR distance: 10m

Waterproof rate: IP68
