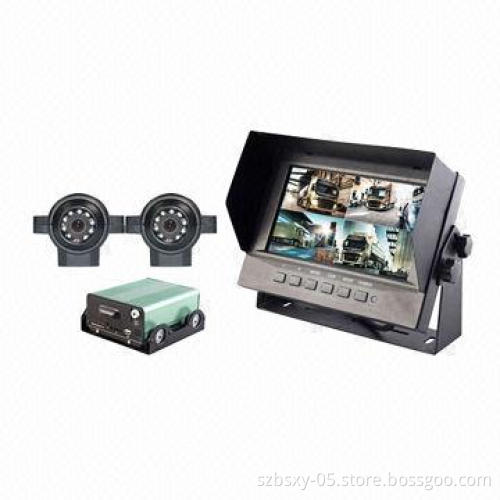

4CH Car Mobile Hard Disk Car DVR Recorder System with Camera for School Bus
  • 4CH Car Mobile Hard Disk Car DVR Recorder System with Camera for School Bus
4CH Car Mobile Hard Disk Car DVR Recorder System with Camera for School Bus

4CH Car Mobile Hard Disk Car DVR Recorder System with Camera for School Bus

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Hard disk is hardly to be damaged from shock by the particular shock-absorbing device design
    • 4-channel video and audio recording
    • Video formats: 1D1 (25fps) + 3CIF (25fps)
    • Alarm input: 4 alarm inputs, no alarm below 4V and high-level alarm above 4V
    • Compression: H.264
    • Data storage: maximum supports 2TB SATA HDD and 64GB SD card
    • Motion detection/timer switch/alarm recording
    • Dual shock-proof
    • Supports USB port
    • Operating temperature range: -30-80°C
    • Power: 6/32V DC
    • Languages: Chinese, English and Russian
  • JY-361:
    • Image device: 1/4-inch sharp CCD
    • Resolutions: 420TVL
    • TV systems: PAL/NTSC
    • Effective pixels: 512 x 582/512 x 492 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 interlace
    • Sync system: internal
    • Horizontal sync frequency: 15.625/15.734kHz
    • Vertical sync frequencies: 50/60Hz
    • Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux (day)/F1.2
    • Video output: 1.0Vp-p, 75Ω
    • Gamma consumption: 0.45
    • AGC: auto
    • S/N ratio: better than 48dB
    • White balance: auto
    • Electronic shutter: 1/60 (NTSC)/1/50 (PAL) to 1/10,000 seconds
    • BLC: auto
  • Product idiomatic performance:
    • Lens: 2.5mm
    • Lens angle: 120°
    • Infrared LED light: 5 pieces
    • IR distance: 10m
    • Waterproof rate: IP68
  • JY-M7302:
    • Dimensions: 7-inch color LCD monitor
    • Resolution: 800 x 3 (RGB) x 480 pixels
    • TV systems: NTSC/PAL
    • Multiple menu languages: English, Dutch, French, Spanish, Russian, German and Italic
    • Monitors can be optional with loudspeaker or not, users can adjust sound on the control
    • Screen display mode can be switched the day mode and night mode by pressing button
    • Supports 2 cameras video simultaneous input
    • Supports 1 camera audio simultaneous input
    • Separate trigger control wire on second camera
  • Hard disk is hardly to be damaged from shock by the particular shock-absorbing device design
  • 4-channel video and audio recording
  • Video formats: 1D1 (25fps) + 3CIF (25fps)
  • Alarm input: 4 alarm inputs, no alarm below 4V and high-level alarm above 4V
  • Compression: H.264
  • Data storage: maximum supports 2TB SATA HDD and 64GB SD card
  • Motion detection/timer switch/alarm recording
  • Dual shock-proof
  • Supports USB port
  • Operating temperature range: -30-80°C
  • Power: 6/32V DC
  • Languages: Chinese, English and Russian
  • Image device: 1/4-inch sharp CCD
  • Resolutions: 420TVL
  • TV systems: PAL/NTSC
  • Effective pixels: 512 x 582/512 x 492 pixels
  • Sensing area: 3.6 x 2.7mm
  • Scanning system: 2:1 interlace
  • Sync system: internal
  • Horizontal sync frequency: 15.625/15.734kHz
  • Vertical sync frequencies: 50/60Hz
  • Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux (day)/F1.2
  • Video output: 1.0Vp-p, 75Ω
  • Gamma consumption: 0.45
  • AGC: auto
  • S/N ratio: better than 48dB
  • White balance: auto
  • Electronic shutter: 1/60 (NTSC)/1/50 (PAL) to 1/10,000 seconds
  • BLC: auto
  • Lens: 2.5mm
  • Lens angle: 120°
  • Infrared LED light: 5 pieces
  • IR distance: 10m
  • Waterproof rate: IP68
  • Dimensions: 7-inch color LCD monitor
  • Resolution: 800 x 3 (RGB) x 480 pixels
  • TV systems: NTSC/PAL
  • Multiple menu languages: English, Dutch, French, Spanish, Russian, German and Italic
  • Monitors can be optional with loudspeaker or not, users can adjust sound on the control
  • Screen display mode can be switched the day mode and night mode by pressing button
  • Supports 2 cameras video simultaneous input
  • Supports 1 camera audio simultaneous input
  • Separate trigger control wire on second camera
