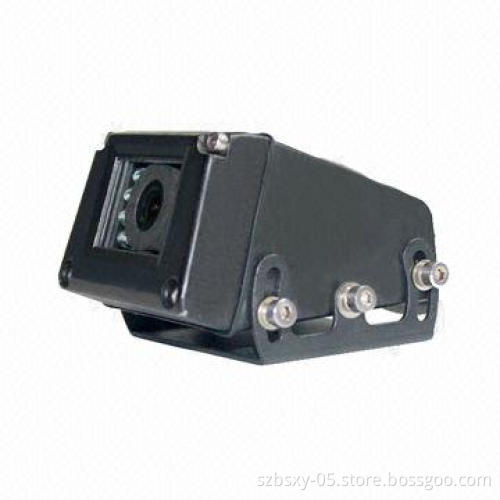

Waterproof Car Side Camera for School Buses Rear-view System, 420TVL Resolution

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

Image device: 1/4 Sharp CCD
Resolution: 420TVL
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Sync system: internal
Horizontal sync frequency: 15.625/15.734kHz
Vertical sync frequency: 50/60Hz
Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2
Video output: 1.0Vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: auto
S/N ratio: better than 48dB
White balance: auto
Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds
BLC: auto

Idiomatical performance:

Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 7 pieces
IR distance: 10m
Waterproof rate: IP69
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Current consumption: 180mA (maximum)
Power supply: 12V DC
Operating temperature: -20 to 70°C, 95 RH (maximum)
Storage temperature: -40 to 80°C, 95 RH (maximum)

Featured functions are optional:

Chip CMOS
Chip Sony 420/480/520/560TVL
Super wide angle (180°)
Mic: collects the environmental sound around the camera
Self heating: the cameras will entry the self-heating mode whenthe environmental working temperature is lower than 10 and it willsautomatic stop heating when the temperature reaches 30
Mirror and non-mirror images option (adjusted by screw)
Superficial colors are optional: black, white, silver

Image device: 1/4 Sharp CCD

Resolution: 420TVL

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync system: internal

Horizontal sync frequency: 15.625/15.734kHz

Vertical sync frequency: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2

Video output: 1.0Vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds

BLC: auto

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 7 pieces

IR distance: 10m

Waterproof rate: IP69

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: 180mA (maximum)

Power supply: 12V DC

Operating temperature: -20 to 70°C, 95 RH (maximum)

Storage temperature: -40 to 80°C, 95 RH (maximum)

Chip CMOS

Chip Sony 420/480/520/560TVL

Super wide angle (180°)

Mic: collects the environmental sound around the camera

Self heating: the cameras will entry the self-heating mode whenthe environmental working temperature is lower than 10 and it willsautomatic stop heating when the temperature reaches 30

Mirror and non-mirror images option (adjusted by screw)

Superficial colors are optional: black, white, silver
