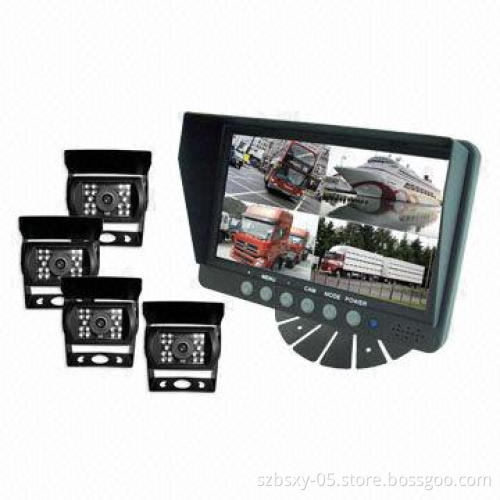

7-inch Car Rearview System, 4-channel Camera Digital System, Built-in Quad Control Box Function
  • 7-inch Car Rearview System, 4-channel Camera Digital System, Built-in Quad Control Box Function
7-inch Car Rearview System, 4-channel Camera Digital System, Built-in Quad Control Box Function

7-inch Car Rearview System, 4-channel Camera Digital System, Built-in Quad Control Box Function

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Main features:
    • Built-in quad control box function
    • Support four cameras input
    • With remote controller
    • Single view/split view/quad view selectable
    • 7 languages OSD display
    • PAL/NTSC optional, mirror/normal image (optional)
    • Automatically turn-on when the reversing gear is engaged
    • Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
    • With high-low voltage and short-circuit protections
  • Technical data:
    • 7-inch TFT LCD monitor, 16:9
    • Wide viewing angle (CRI >10Ra): up/down/left/right:40/40/60/60 degrees
    • Resolution: 400 RGB x 234 dots
    • Color system: PAL/NTSC (selectable)
    • Power requirement: 12/24V DC
    • Power consumption: d5W
    • Operating temperature: -20 to +70 degrees Celsius
    • Storage temperature: -30 to +80 degrees Celsius
    • Dimensions (L x W x D): 183 x 125 x 38cm
    • Camera:
      • Sharp or Sony CCD (optional)
      • 420TV lines
      • Wide viewing angle
      • With 18 pieces LEDs
      • Waterproof
  • Built-in quad control box function
  • Support four cameras input
  • With remote controller
  • Single view/split view/quad view selectable
  • 7 languages OSD display
  • PAL/NTSC optional, mirror/normal image (optional)
  • Automatically turn-on when the reversing gear is engaged
  • Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
  • With high-low voltage and short-circuit protections
  • 7-inch TFT LCD monitor, 16:9
  • Wide viewing angle (CRI >10Ra): up/down/left/right:40/40/60/60 degrees
  • Resolution: 400 RGB x 234 dots
  • Color system: PAL/NTSC (selectable)
  • Power requirement: 12/24V DC
  • Power consumption: d5W
  • Operating temperature: -20 to +70 degrees Celsius
  • Storage temperature: -30 to +80 degrees Celsius
  • Dimensions (L x W x D): 183 x 125 x 38cm
  • Camera:
    • Sharp or Sony CCD (optional)
    • 420TV lines
    • Wide viewing angle
    • With 18 pieces LEDs
    • Waterproof
  • Sharp or Sony CCD (optional)
  • 420TV lines
  • Wide viewing angle
  • With 18 pieces LEDs
  • Waterproof
