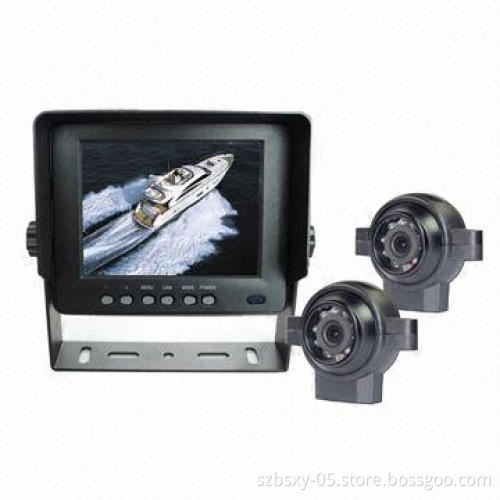

5-inch Waterproof Car Rearview System for Boat, Supports 2 Cameras Video Simultaneous Input

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Monitor:

Dimensions: 5-inch digital color LCD monitor
Resolution: 640 x 3(RGB) x 480P
TV system: NTSC/PAL
Waterproof rate: IP69K
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Multiple menu languages: English, Dutch, French, Spanish,Russian, German, Italian
Supports 2 cameras video simultaneous input
Monitor wills automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage, trigger end after shutdown
Working voltage: 12 to 32V, self-protect of the DC voltage atthe short-circuit

Camera:

Image device: 1/4-inch Sharp CCD
Resolution: 420TV lines
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Synchronization system: internal
Horizontal synchronization frequency: 15.625/15.734kHz
Vertical synchronization frequency: 50/60Hz
Minimum illumination: 0 Lux (infrared lamps on) 0 .1 Lux(day)/F1.2
Output video: 1.0vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: auto
S/N ratio: better than 48dB
White balance: auto
Electronic shutter:
- NTSC: 1/60 to 1/10,000 seconds
- PAL: 1/50 to 1/10,000 seconds
BLC: auto

Specifications:

Lens: 2.5mm
Beam angle: 120°
Infrared LED quantity: 9 pieces
IR distance: 10m
Waterproof rate: IP68
Shell material: aluminum alloy
Bracket material: nylon fabric
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Operating temperature: -20 to 70°C, 95 RH (maximum)
Storage temperature: -40 to 80°C, 95 RH (maximum)

Functions:

Chip: Sony 420/480/520/560TV lines
Mic: collects the environmental sound around the camera
Mirror and non-mirror images option
Superficial colors are optional: black, white, silver

Dimensions: 5-inch digital color LCD monitor

Resolution: 640 x 3(RGB) x 480P

TV system: NTSC/PAL

Waterproof rate: IP69K

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Multiple menu languages: English, Dutch, French, Spanish,Russian, German, Italian

Supports 2 cameras video simultaneous input

Monitor wills automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage, trigger end after shutdown

Working voltage: 12 to 32V, self-protect of the DC voltage atthe short-circuit

Image device: 1/4-inch Sharp CCD

Resolution: 420TV lines

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Synchronization system: internal

Horizontal synchronization frequency: 15.625/15.734kHz

Vertical synchronization frequency: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps on) 0 .1 Lux(day)/F1.2

Output video: 1.0vp-p, 75 Ohms
